Echo SRM-202FA Brushcutter

Model: SRM-202FA

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

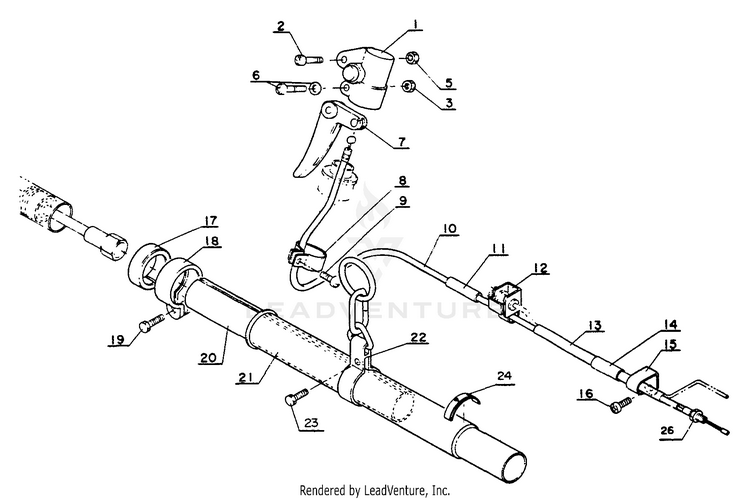

Driveshaft, Throttle

...
...
1
BRACKET, TRIGGER ECH-17802406130
...
2
SCREW ECH-17811005330
...
3
NUT M5 ECH-90050000005
...
5
NUT, LOCK M5 ECH-90056000005
...
6
SCREW 5x28 ECH-90024005028
...
7
TRIGGER, THROTTLE ECH-17801005330
...
8
CLAMP ECH-17810605330
...
9
SCREW 5x10 ECH-90022005010
...
10
CABLE, THROTTLE ECH-17800105330
...
11
TUBE ECH-17801604630
...
12
CLIP ECH-17811104931
...
13
TUBE, VINYL ECH-17801605330
...
14
TUBE ECH-17812704930
...
15
CLAMP ECH-17812104631
...
16
SCREW 5x8 ECH-90022005008
...
17
SPACER ECH-61026004730
...
18
CLAMP ECH-61020304730
...
19
BOLT - 5x16 ECH-90010005016
...
20
BUSHING ECH-61025904730
...
21
TUBE, SWIVEL ECH-61025805330
...
------------------
SRM-202FA (OBSOLETE) ECH---
...
23
BOLT 5x12 ECH-90010005012
...
26
NUT M6 ECH-90050200006
...
24
LABEL - ALIGNMENT ECH-89015204930
...
...
...
...
...
