Echo SRM-202FA Brushcutter

Model: SRM-202FA

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

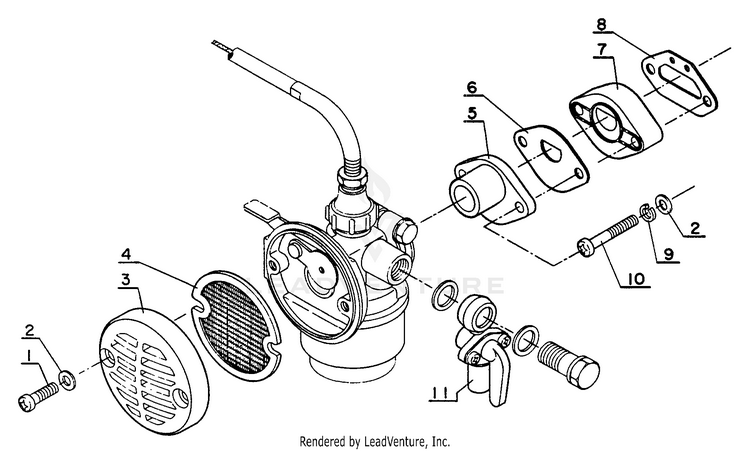

Intake, Exhaust, Air Cleaner

...
...
1
SCREW 4x12 ECH-90022004012
...
2
WASHER 4 MM ECH-90060000004
...
3
COVER, AIR FILTER ECH-13031304730
...
4
FILTER, AIR ECH-13031004730
...
5
ADAPTOR, INTAKE ECH-13051005330
...
6
PACKING ECH-13001605330
...
7
INSULATOR, INTAKE ECH-13001705330
...
8
GASKET, INTAKE ECH-13001005330
...
9
WASHER, SPRING 4 ECH-900605-00004
...
10
SCREW 4x25 ECH-90022004025
...
11
VALVE, FUEL ECH-13220000512
...
...
...
...
...
