product name

Echo SRM-202FA Brushcutter

Model: SRM-202FA

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

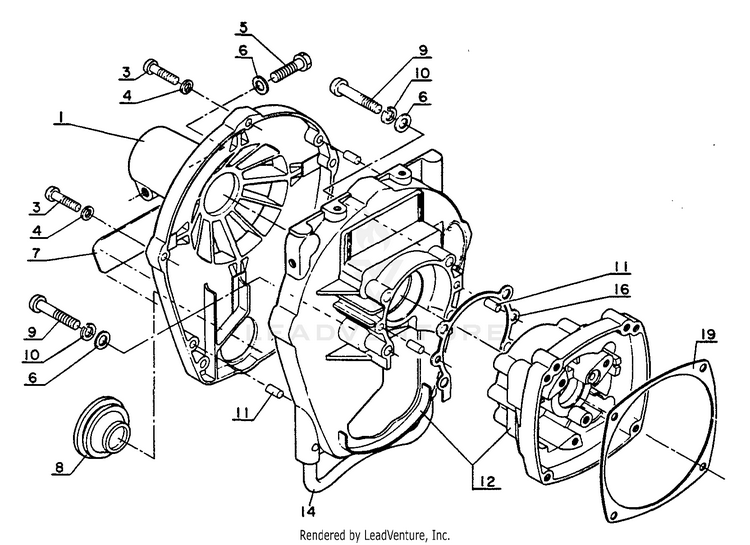

Crankcase, Fan Housing

...
...
1
CASE, FAN ECH-10151104631
...
2
D-WASHER ECH-61023904130
...
3
SCREW 4x18 ECH-90022004018
...
4
WASHER 4 MM ECH-90060000004
...
5
BOLT - 5x20 ECH-90010005020
...
6
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
7
MODEL PLATE ECH-89003405330
...
8
COVER, SPARK PLUG ECH-15901504630
...
9
SCREW 5x30 ECH-90022005030
...
10
WASHER, SPRING 5 ECH-90060500005
...
11
PIN, LOCATING 4 ECH-V622000020
...
12
CRANKCASE KIT ECH-10020005330
...
14
STAND ECH-30511004630
...
16
GASKET, CRANKCASE ECH-10024204630
...
19
GASKET, STARTER ECH-10061504631
...
...
...
...
...
