Echo SRM-202FA Brushcutter

Model: SRM-202FA

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

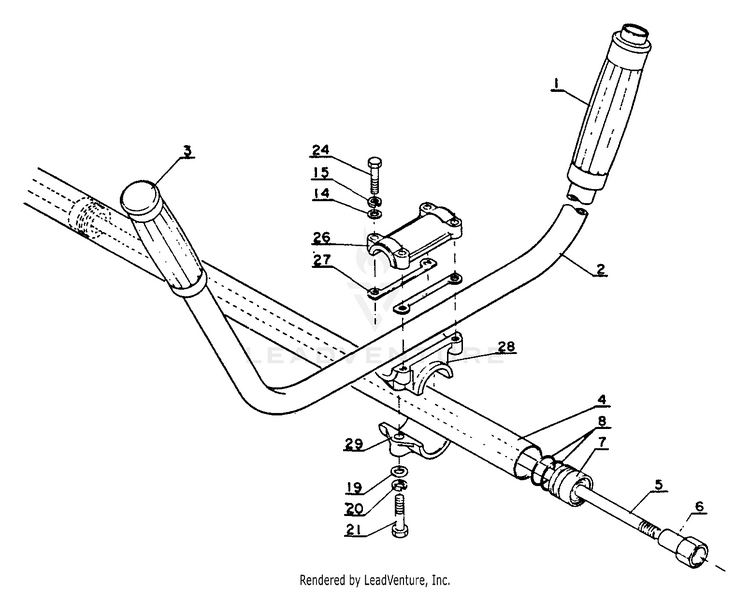

Handles

...
...
1
U-HANDLE ECH-35130005330
...
2
GRIP, HANDLE ECH-35131527931
...
3
GRIP, HANDLE ECH-35131102330
...
4
PIPE, MAIN ECH-61020604730
...
7
STOPPER ECH-61010504130
...
8
O-RING 22 ECH-90072000022
...
5
DRIVESHAFT ECH-61001104630
...
6
DRIVESHAFT ECH-61001104630
...
19
WASHER 6.5x11.5x0.8 ECH-90060000006
...
20
WASHER, SPRING 6 ECH-90060500006
...
21
BOLT - 6x32 ECH-90010006032
...
24
BOLT - 5x25 ECH-90010005025
...
26
BRACKET ASSY, HANDLE ECH-35130104130
...
28
BRACKET ASSY, HANDLE ECH-35130104130
...
29
BRACKET ASSY, HANDLE ECH-35130104130
...
14
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
15
WASHER, SPRING 5 ECH-90060500005
...
27
WASHER ECH-35131904130
...
...
...
...
...
