Echo SRM-202FA Brushcutter

Model: SRM-202FA

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

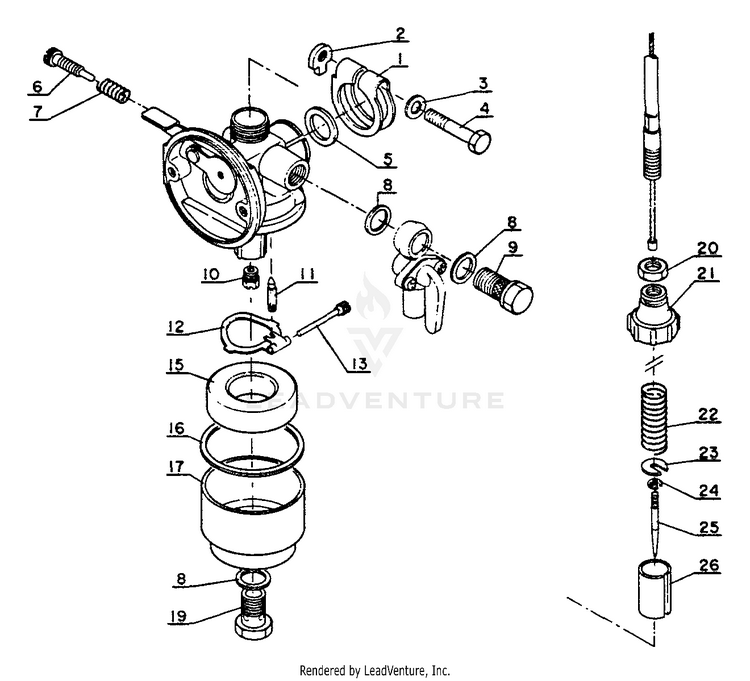

Carburetor

...
...
1
CARBURETOR ASS'Y. ECH-12000005331
...
1
NUT ECH-12015110210
...
2
OUTLET CLIP ECH-12024901321
...
3
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
4
BOLT ECH-12014701321
...
5
O-RING ECH-12014901820
...
6
SCREW ECH-12015904731
...
7
SPRING, IDLE ADJUST ECH-12016001321
...
8
GASKET ECH-12413011120
...
9
BOLT, BANJO ECH-12013100120
...
10
JET, MAIN ECH-12012201820
...
11
VALVE, INLET NEEDLE ECH-12010201110
...
12
LEVER, METERING ECH-12012101820
...
13
PIN, METERING LEVER ECH-12013201820
...
15
FLOAT ECH-12013301820
...
16
GASKET, FLOAT CHAMBER ECH-12012301820
...
17
CHAMBER, FLOAT ECH-12012401820
...
19
HOLDING BOLT ECH-12012801820
...
20
NUT ECH-12011104730
...
21
COVER, TOP ECH-12011304730
...
22
SPRING, THROTTLE ECH-12011401820
...
23
WASHER, SPRING SUPPORT ECH-12011508020
...
24
JET NEDDLE W/CLIP ECH-12010305330
...
25
JET NEDDLE W/CLIP ECH-12010305330
...
26
VALVE, THROTTLE ECH-12011805330
...
...
...
...
...
