Echo SRM-202FA Brushcutter

Model: SRM-202FA

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

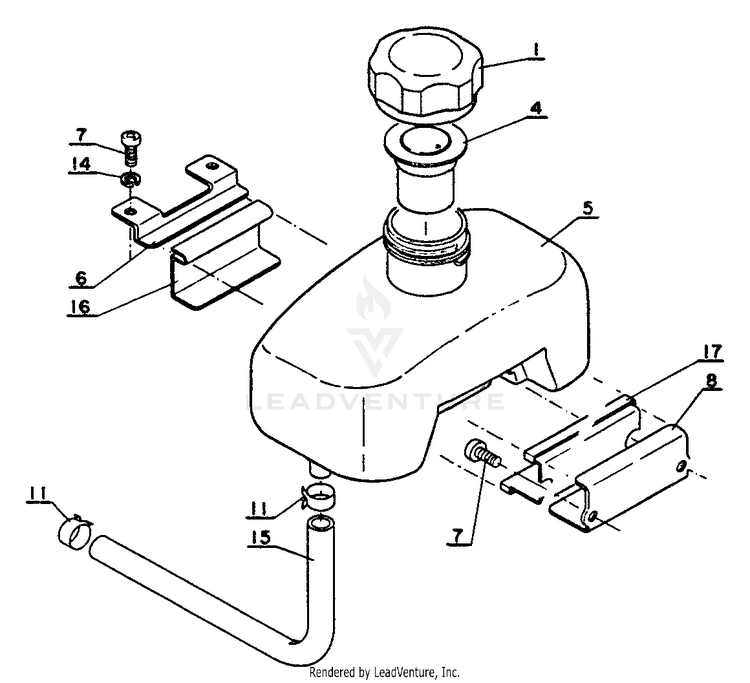

Fuel System

...
...
1
CAP ECH-13101701110
...
4
CAP, VENT ECH-13100305330
...
5
TANK, FUEL ECH-13101004730
...
6
BRACKET, FUEL TANK ECH-13191005330
...
7
SCREW 4x8 ECH-90022004008
...
8
BRACKET, FUEL TANK ECH-13191804630
...
11
CLIP 10.5 MM ECH-13201314010
...
14
WASHER, SPRING 4 ECH-900605-00004
...
15
PIPE, FUEL ITEM IS NO LONGER AVAILABLE ECH-13201204731
...
16
CUSHION, FUEL TANK ECH-13192005330
...
17
CUSHION, FUEL TANK ECH-13192405330
...
...
...
...
...
