Echo SRM-202FA Brushcutter

Model: SRM-202FA

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

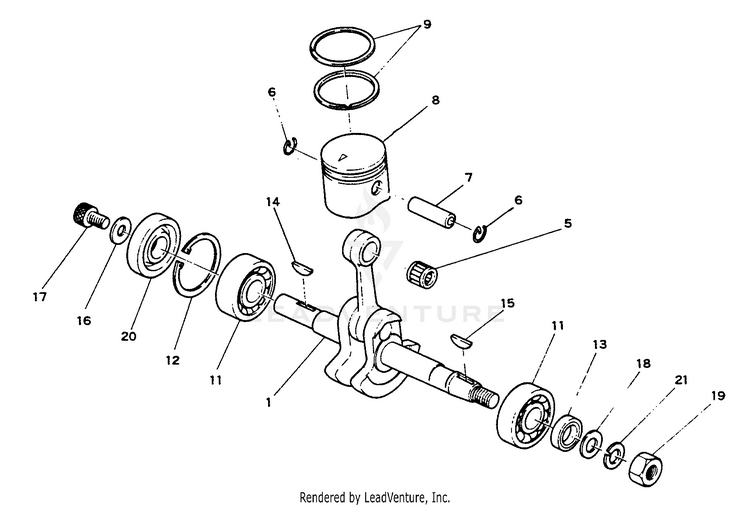

Bearings, Crankshaft, Piston

...
...
1
CRANKSHAFT ECH-10010005331
...
5
BEARING, NEEDLE 8 ECH-17501203930
...
6
RING, SNAP ECH-10001504630
...
7
PIN, PISTON ECH-10001310210
...
8
PISTON KIT ECH-10000005330
...
9
RING, PISTON ECH-10001105330
...
11
BEARING, BALL 6201 ECH-9403536201
...
12
RING, SNAP 32 ECH-90070200032
...
13
SEAL, OIL 12 ECH-V505000140
...
14
KEY, WOODRUFF ECH-61032502730
...
15
KEY ECH-10014200310
...
16
WASHER 6 ECH-17501404630
...
17
BOLT M6x10 ECH-90010506010
...
18
WASHER ECH-10014304630
...
19
NUT 8x1.25 ECH-90050200008
...
20
SEAL, OIL 12 ECH-10021203930
...
21
WASHER, SPRING 8 ECH-90060500008
...
...
...
...
...
