Echo SRM-200D Brushcutter

Model: SRM-200D

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

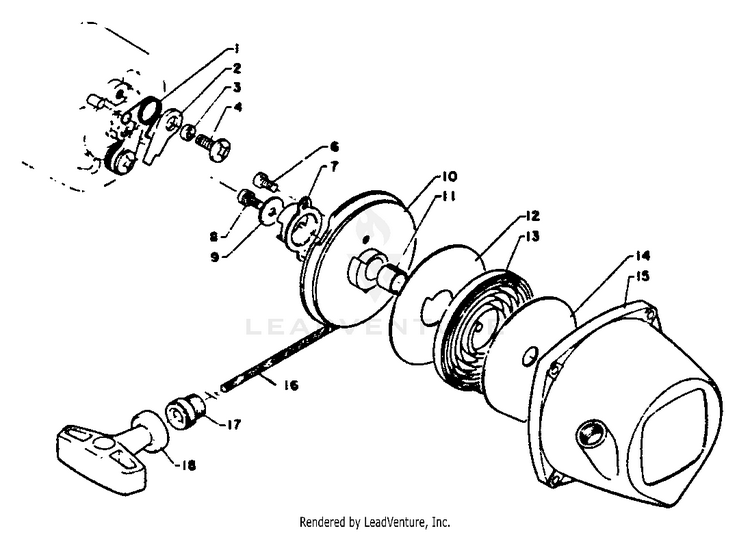

Starter

...
...
xx
STARTER ASSY Includes ITEMS 6-18 ECH-17720004630
...
6
SCREW 4x8 ECH-90022004008
...
7
PAWL CATCHER ECH-17724304630
...
8
SCREW 4x8 ECH-90024104008
...
9
WASHER 4.1x15.5x1T ECH-17721404630
...
10
REEL, ROPE ECH-17721504630
...
11
BUSHING ECH-17721604630
...
12
PLATE, STARTER ECH-17724204630
...
13
SPRING, RECOIL ECH-17722003930
...
14
PLATE, STARTER ECH-17722104630
...
15
CASE, STARTER ECH-17720904630
...
16
ROPE, STARTER 3.5x850 RePower BULK OPTION: 99944445000 ECH-17722603930
...
17
GUIDE, ROPE ECH-17722705330
...
18
HANDLE ECH-17722811130
...
1
SPRING, RETURN ECH-17723404632
...
2
PAWL, STARTER ECH-17721803930
...
3
SPACER 5.2x8x2.1 ECH-17724704630
...
4
SCREW 5x14 ECH-90021605014
...
...
...
...
...
