Echo SRM-200D Brushcutter

Model: SRM-200D

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

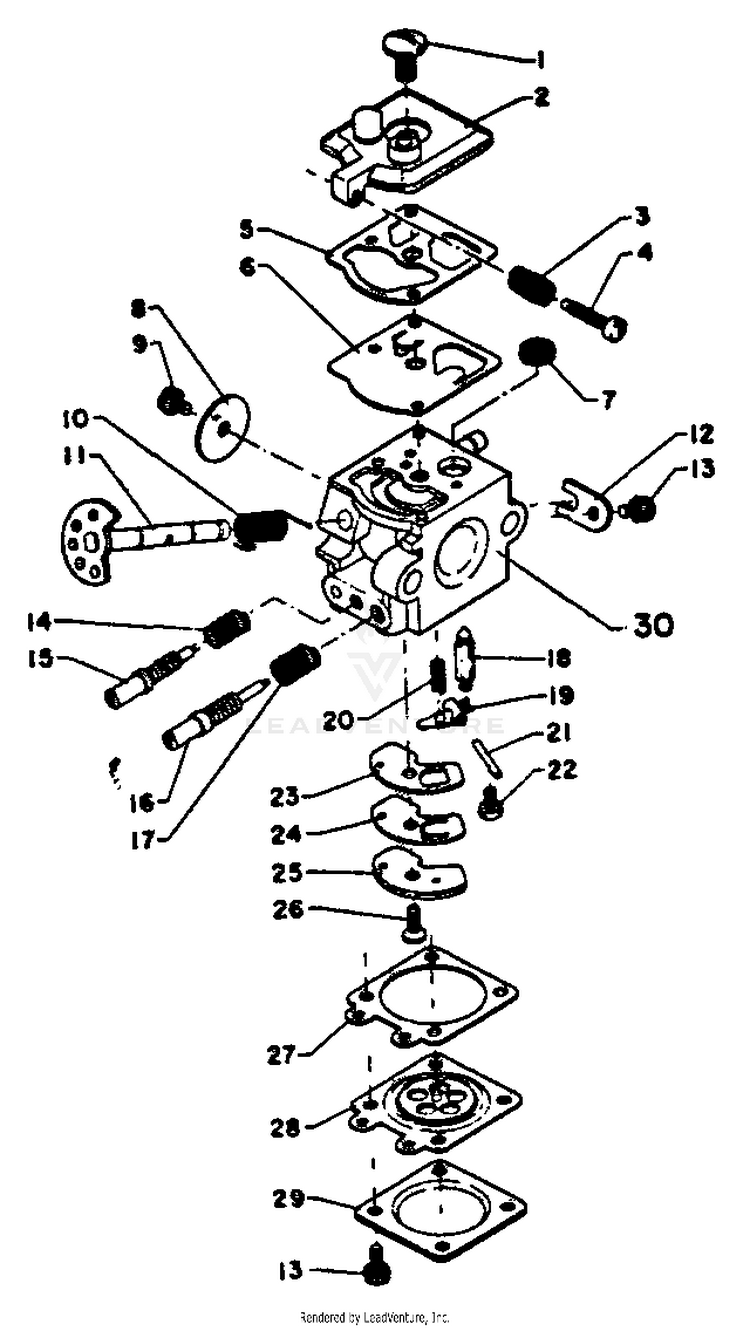

Carburetor

...
...
xx
CARBURETOR - WA-21 Includes ITEMS 1-30 ECH-12300005230
...
1
SCREW ECH-12311003930
...
2
COVER, PUMP ECH-12312403930
...
3
SPRING, IDLE ADJUST ECH-12313303930
...
4
SCREW, IDLE ADJUST ECH-12313403930
...
5
GASKET, FUEL PUMP ECH-12312503930
...
6
DIAPHRAGM, FUEL PUMP ECH-12311203930
...
7
SCREEN, FUEL INLET ECH-12312610631
...
8
VALVE, THROTTLE ECH-12311605230
...
9
SCREW ECH-12311403930
...
10
SPRING, THROTTLE RETURN ECH-12311309660
...
11
SHAFT, THROTTLE ECH-12311703930
...
12
CLIP, THROTTLE SHAFT ECH-12312703930
...
13
SCREW ECH-12314403930
...
14
SPRING, NEEDLE ECH-12312103930
...
15
NEEDLE, IDLE ECH-12311806230
...
16
NEEDLE, HIGH SPEED ECH-12312005230
...
17
SPRING, NEEDLE ECH-12311903930
...
18
VALVE, INLET NEEDLE ECH-12313703930
...
19
LEVER, METERING ECH-12312338330
...
20
SPRING ECH-12312203930
...
21
PIN, METERING LEVER ECH-12313803930
...
22
SCREW, METERING LEVER PIN ECH-12313903930
...
23
GASKET, CIRCUIT PLATE ECH-12316403930
...
24
VALVE, CHECK ECH-12316503930
...
25
PLATE, CIRCUIT ECH-12316603930
...
26
SCREW, CIRCUIT PLATE ECH-12316705230
...
27
GASKET, METERING DIAPHRAGM ECH-12314003930
...
28
DIAPHRAGM, METERING ECH-12314103930
...
29
COVER, METERING DIAPHRAGM ECH-12314203930
...
30
BODY, CARBURETOR NOT AVAILABLE SEPARATELY ECH---
...
...
...
...
...
