Echo SRM-200CE Brushcutter

Model: SRM-200CE

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

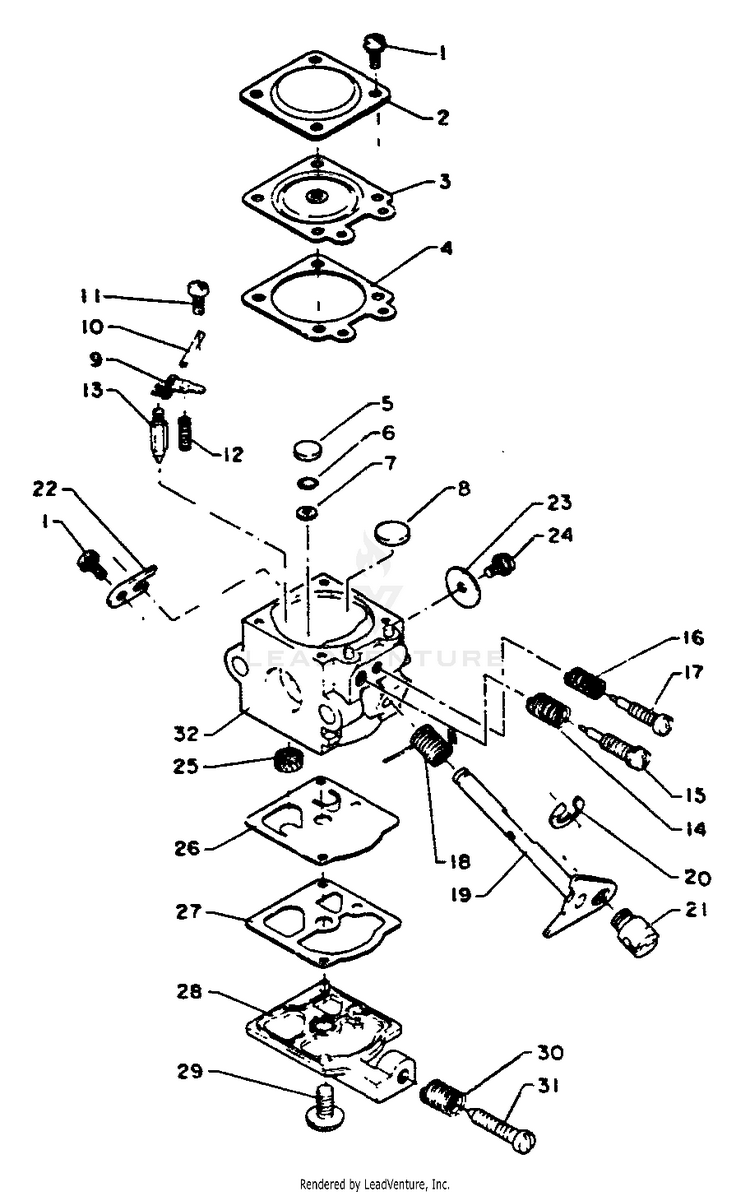

Carburetor

...
...
xx
CARBURETOR - WA-143 Includes ITEMS 1-32 ECH-12300009320
...
1
SCREW Included in Carburetor Repair Kit P/N 12310009320 ECH---
...
2
COVER, METERING DIAPHRAGM ECH-12314203930
...
3
DIAPHRAGM, METERING Included in Carburetor Repair Kit P/N 12310009320 & Carburetor Diaphragm/Gasket Kit P/N 12310110530 ECH---
...
4
GASKET, METERING Included in Carburetor Repair Kit P/N 12310009320 & Carburetor Diaphragm/Gasket Kit P/N 12310110530 ECH---
...
5
PLUG, WELCH Included in Carburetor Repair Kit P/N 12310009320 ECH---
...
6
RING, RETAINING Included in Carburetor Repair Kit P/N 12310009320 ECH---
...
7
STRAINER Included in Carburetor Repair Kit P/N 12310009320 ECH---
...
8
PLUG, WELCH Included in Carburetor Repair Kit P/N 12310009320 ECH---
...
9
LEVER, METERING Included in Carburetor Repair Kit P/N 12310009320 ECH---
...
10
PIN, METERING LEVER Included in Carburetor Repair Kit P/N 12310009320 ECH---
...
11
SCREW, METERING LEVER PIN Included in Carburetor Repair Kit P/N 12310009320 ECH---
...
12
SPRING, METERING LEVER Included in Carburetor Repair Kit P/N 12310009320 ECH---
...
13
VALVE, INLET NEEDLE Included in Carburetor Repair Kit P/N 12310009320 ECH---
...
------------------
SPRING, NEEDLE Included in Carburetor Repair Kit P/N 12310009320 ECH---
...
15
NEEDLE, HIGH SPEED ECH-12312000760
...
16
SPRING Included in Carburetor Repair Kit P/N 12310009320 ECH---
...
17
NEEDLE, LOW SPEED ECH-12311824430
...
18
SPRING, THROTTLE RETURN ECH-12311309660
...
19
SHAFT, THROTTLE ECH-12311709320
...
20
RING, RETAINING ECH-12312710630
...
21
SWIVEL ECH-12317204320
...
22
CLIP, THROTTLE SHAFT ECH-12312703930
...
23
VALVE, THROTTLE ECH-12311605230
...
24
SCREW ECH-12311403930
...
25
STRAINER Included in Carburetor Repair Kit P/N 12310009320 ECH---
...
26
DIAPHRAGM, PUMP Included in Carburetor Repair Kit P/N 12310009320 & Carburetor Diaphragm/Gasket Kit P/N 12310110530 ECH---
...
------------------
GASKET, PUMP Included in Carburetor Repair Kit P/N 12310009320 & Carburetor Diaphragm/Gasket Kit P/N 12310110530 ECH---
...
28
COVER, PUMP ECH-12312416530
...
29
SCREW ECH-12311003930
...
30
SPRING, IDLE ADJUST ECH-12313311130
...
31
SCREW, IDLE ADJUST ECH-12313406530
...
32
BODY, CARBURETOR NOT AVAILABLE SEPARATELY ECH---
...
xx
REPAIR KIT, CARBURETOR ECH-12310009320
...
xx
GASKET / DIAPHRAGM KIT ECH-12310110530
...
...
...
...
...
