Echo SRM-200CE Brushcutter

Model: SRM-200CE

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

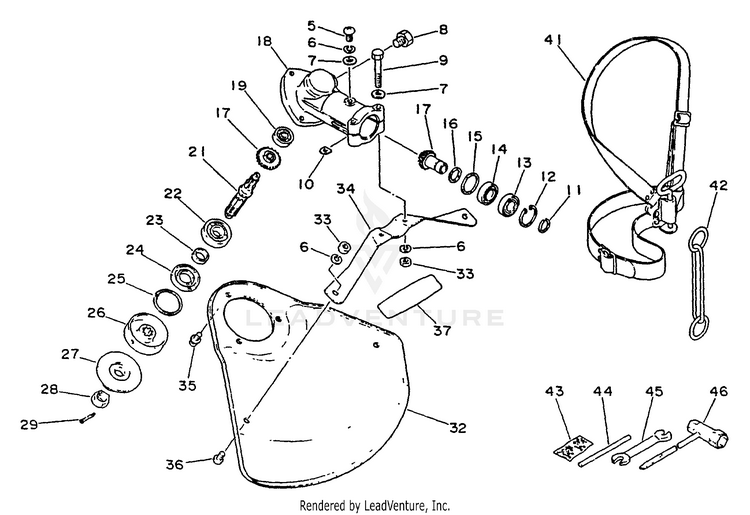

Shield, Gear Case, Harness, Tools

...
...
xx
GEAR CASE ASSY ECH-61040040830
...
5
SCREW 5x10 ECH-90022005010
...
6
WASHER, SPRING 5 ECH-90060500005
...
7
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
8
BOLT 8x8 SP ECH-90010008008
...
9
BOLT 5x35 SP ECH-90010005035
...
10
D-WASHER ECH-61023904130
...
11
RING, SNAP 10 ECH-90070600010
...
12
RING, SNAP 22 ECH-90070200022
...
13
BEARING, BALL 6900Z ECH-90085806900
...
14
BEARING, BALL 6900 ECH-90085506900
...
15
WASHER ECH-61031622830
...
16
WASHER ECH-61031722830
...
17
GEAR SET ECH-61030042330
...
18
GEAR CASE ASSY ECH-61040208932
...
19
BEARING, BALL 626 ECH-90081000626
...
21
SHAFT, GEAR ECH-61031040830
...
22
BEARING, BALL 6000 ECH-90080006000
...
23
SPACER ECH-61031522830
...
24
SEAL, OIL ECH-61041322830
...
25
RING, SNAP 26 ECH-90070200026
...
26
PLATE, ADAPTOR - UPPER ECH-61031340830
...
27
PLATE, ADAPTOR - LOWER ECH-61031406030
...
28
NUT 10 ECH-90051100010
...
29
PIN, COTTER 2x22 BULK OPTION: 89850201130 - 10 PACK ECH-90030020022
...
32
SHIELD, METAL DEBRIS ECH-C550000200
...
33
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
34
BRACKET, SHIELD ECH-69901544630
...
35
SCREW 5x10 ECH-90024205010
...
36
SCREW 5x8 ECH-90022005008
...
37
LABEL - ECHO ECH-X502000320
...
41
HARNESS ASY ECH-30100055232
...
42
RING, HARNESS ECH-30130524330
...
43
PIN, COTTER 2x22 (PKG. OF 10) ECH-89850201130
...
44
TOOL, LOCKING 5x120 MM ECH-89751801131
...
45
SPANNER 8x10 ECH-89511200330
...
46
T-WRENCH 17x19 L200 ECH-X602000020
...
50
LABEL - ECHO ECH-X502000320
...
51
LABEL - CAUTION ECH-89017740730
...
52
SHIELD ASSY ECH-69900040831
...
53
CUTTER KIT ECH-P021006080
...
54
PROTECTOR ECH-69921223230
...
55
SCREW 5x16 ECH-90024205016
...
56
PLATE, SHIELD ECH-C552000240
...
...
...
...
...
