Echo SRM-200CE Brushcutter

Model: SRM-200CE

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

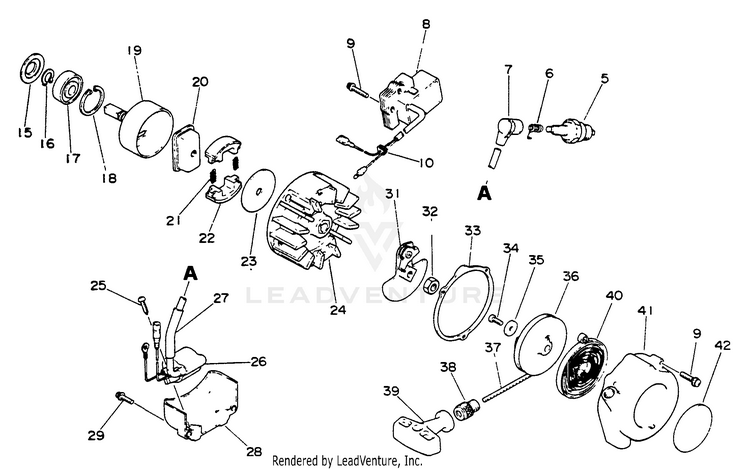

Clutch, Ignition, Starter

...
...
5
SPARK PLUG - CJ8 ECH-CJ8
...
6
TERMINAL, SPARK PLUG ECH-15901103432
...
7
CAP, SPARK PLUG ECH-15901203433
...
8
COIL, IGNITION ECH-15660107421
...
9
SCREW 4x20 ECH-90024204020
...
10
GROMMET ECH-15611402310
...
15
STOPPER ECH-175053-04920
...
16
RING, SNAP 12 ECH-90070100012
...
17
BEARING, BALL 6201 ECH-90081206201
...
18
RING, SNAP 32 ECH-90070200032
...
19
DRUM, CLUTCH ECH-17501004920
...
20
BOSS, CLUTCH ECH-17501604920
...
21
SPRING, CLUTCH ECH-17501805130
...
22
SHOE, CLUTCH ECH-17500905131
...
23
PLATE, CLUTCH ECH-17501904920
...
24
FLYWHEEL ECH-15680007420
...
25
SCREW 4x16 ECH-90025504016
...
26
COIL, IGNITION ECH-15662609420
...
27
PIPE ECH-15661109420
...
28
COVER ECH-15931509420
...
29
SCREW 4x14 ECH-90024204014
...
31
PAWL ASSY, STARTER ECH-17730504920
...
32
NUT 8x1.25 ECH-90050200008
...
33
GASKET, STARTER ECH-10061504921
...
xx
STARTER ASSY Includes items 34 thru 41 ECH-17720007421
...
34
SCREW 4x10 ECH-90024204010
...
35
WASHER ECH-17721420430
...
36
REEL, ROPE ECH-17721504920
...
37
ROPE, STARTER 3.5x850 RePower BULK OPTION: 99944445000 ECH-17722603930
...
38
GUIDE, ROPE ECH-17722705330
...
39
GRIP, STARTER ECH-17722806530
...
40
SPRING, RECOIL ECH-17722006530
...
41
CASE, STARTER ECH-17720907420
...
42
LABEL - ECHO ECH-89011226730
...
...
...
...
...
