Echo SRM-200CE Brushcutter

Model: SRM-200CE

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

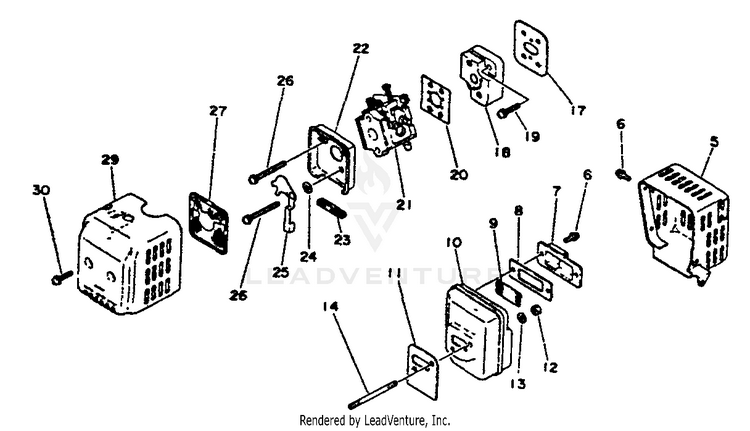

Intake, Exhaust, Air Cleaner

...
...
xx
MUFFLER ASY Includes items 5 thru 11 ECH-14580309222
...
5
COVER, EXHAUST ECH-14587109220
...
6
SCREW 4x10 ECH-90024204010
...
7
SCREEN HOLDER ECH-14580928430
...
8
GASKET, MUFFLER LID Includes items 9, 10 and 11 ECH-14586628431
...
9
SCREEN, SPARK ARRESTER ECH-14586209220
...
10
MUFFLER ECH-14580609220
...
11
GASKET ECH-14551009221
...
12
NUT, LOCK M5 ECH-90056000005
...
13
WASHER 5.5x12x0.8 ECH-90060300005
...
14
BOLT, STUD ECH-10101400560
...
17
GASKET ECH-13001009221
...
18
INSULATOR ECH-13000709320
...
19
SCREW 5x20 ECH-90024305020
...
20
GASKET ECH-13001609221
...
21
CARBURETOR - WA-143 ECH-12300009320
...
22
CASE, AIR FILTER Includes item 23 ECH-13030109220
...
23
GROMMET ECH-17881021630
...
24
WASHER 5.2x8x0.8T ECH-17851600830
...
25
SHUTTER, CHOKE ECH-17851509220
...
26
SCREW 5x40 ECH-90024205040
...
27
FILTER, AIR ECH-13031006530
...
29
COVER, AIR FILTER ECH-13030809220
...
30
SCREW 4x18 ECH-90024204018
...
...
...
...
...
