Echo SRM-200AE Brushcutter

Model: SRM-200AE

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

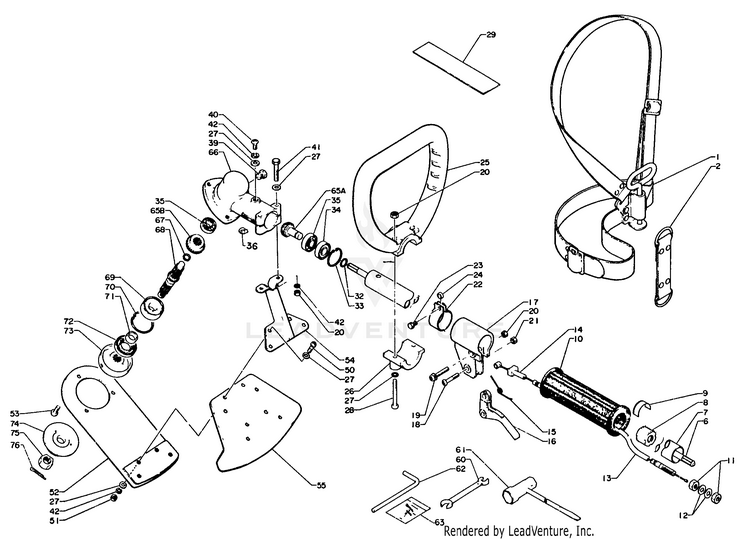

Driveshaft, Handles, Harness, Throttle, Gear Case, Shield, Tools

...
...
1
HARNESS ASY Includes item 2 ECH-30100055232
...
2
STRAP ASSY, SHOULDER ECH-30130507530
...
6
DRIVESHAFT ECH-61001108930
...
7
PIPE, MAIN Includes item 8 ECH-61020622830
...
8
STOPPER ECH-61010508930
...
9
LABEL - ALIGNMENT ECH-89015204930
...
10
GRIP ECH-35101208930
...
11
NUT M6 ECH-90050200006
...
12
WASHER 6.5x11.5x0.8 ECH-90060000006
...
13
CABLE, THROTTLE ECH-17800108931
...
14
GUIDE, CABLE ECH-17804805630
...
15
SPRING, THROTTLE ECH-17804306930
...
16
TRIGGER, THROTTLE ECH-C450000060
...
17
BRACKET, TRIGGER ECH-17802408930
...
18
SCREW ECH-17811005330
...
19
SCREW 5x30 ECH-90024205030
...
20
NUT M5 ECH-90050000005
...
21
NUT, LOCK M5 ECH-90056000005
...
22
HOOK ECH-30120708930
...
23
BOLT 5x18 ECH-90010005018
...
24
SPACER ECH-69901203330
...
25
HANDLE ASSY - LOOP Includes items 20, 27 and 28 ECH-35120108930
...
26
HANDLE ASSY - LOOP Includes items 20, 27 and 28 ECH-35120108930
...
20
NUT M5 ECH-90050000005
...
27
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
28
SCREW 5x40 ECH-90022005040
...
29
LABEL ECH-89016044730
...
xx
SHIELD ASSY Includes items 27, 42, 50 thru 52, 54 and 55 ECH-69900020230
...
27
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
42
WASHER, SPRING 5 ECH-90060500005
...
50
SCREW 5x14 ECH-90022005014
...
51
NUT, LOCK M5 ECH-90056200005
...
52
BRACKET ECH-69900620230
...
54
BRACKET, SHIELD ECH-69901520230
...
53
UNKNOWN ECH---
...
55
SHIELD ECH-69901020230
...
xx
GEAR CASE ASSY Includes items 20, 27, 32 thru 36, 39 thru 42 and 67 thru 76 ECH-61040208932
...
20
NUT M5 ECH-90050000005
...
27
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
32
RING, SNAP 9 ECH-90070600009
...
33
RING, SNAP 25 ECH-90070200025
...
34
BEARING, BALL 609Z ECH-90080300609
...
35
BEARING, BALL 609 ECH-90080000609
...
36
D-WASHER ECH-61023904130
...
39
BOLT 8x8 SP ECH-90010008008
...
40
SCREW 5x10 ECH-90022005010
...
41
BOLT 5x35 SP ECH-90010005035
...
42
WASHER, SPRING 5 ECH-90060500005
...
65
GEAR SET ECH-61030108930
...
65A
GEAR SET See Ref No. 65, Gear set, P/N 61030108930 ECH-61030108930
...
65B
GEAR SET See Ref No. 65, Gear set, P/N 61030108930 ECH-61030108930
...
66
GEAR HOUSING ECH-61046008931
...
67
RING, SNAP 12 ECH-90070600012
...
68
SHAFT, GEAR ECH-C534000270
...
69
BEARING, BALL 6201 ECH-9403536201
...
70
RING, SNAP 32 ECH-90070200032
...
71
SPACER 11.8x15x9 ECH-61031507130
...
72
SEAL, OIL 22 ECH-61041307130
...
73
PLATE, ADAPTOR - UPPER ECH-C535000160
...
74
PLATE, ADAPTOR - LOWER ECH-C535000150
...
75
NUT 10 ECH-90051100010
...
76
PIN, COTTER 2x22 BULK OPTION: 89850201130 - 10 PACK ECH-90030020022
...
60
SPANNER 8x10 ECH-89511200330
...
61
T-WRENCH 17x19 L200 ECH-X602000020
...
62
TOOL, LOCKING 5x120 MM ECH-89751801131
...
63
PIN, COTTER 2x22 (PKG. OF 10) ECH-89850201130
...
...
...
...
...
