Echo SRM-200AE Brushcutter

Model: SRM-200AE

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

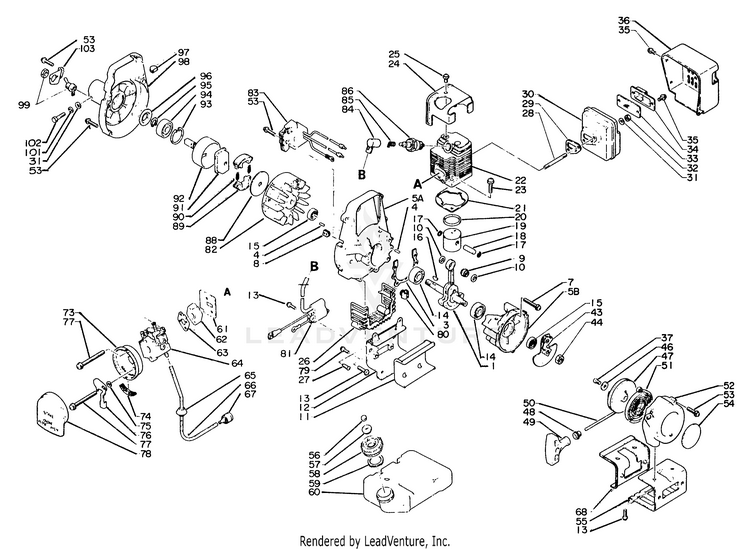

Engine, Crankcase, Ignition

...
...
1
CRANKSHAFT ASSY ECH-10010007420
...
3
GASKET, CRANKCASE ECH-10024204920
...
5
CRANKCASE KIT ECH-10020007420
...
5A
CRANKCASE KIT See Ref No. 5, Crankcase Set, P/N 10020007420 ECH-10020007420
...
5B
CRANKCASE KIT See Ref No. 5, Crankcase Set, P/N 10020007420 ECH-10020007420
...
4
PIN, LOCATING 4 ECH-V622000020
...
7
SCREW 5x30 ECH-90024205030
...
8
GROMMET ECH-15611402310
...
9
BEARING, NEEDLE ECH-10011305930
...
10
WASHER, THRUST ECH-10001406520
...
11
CUSHION ECH-13192007320
...
12
BRACKET, FUEL TANK ECH-13191007420
...
13
SCREW 4x14 ECH-90024204014
...
14
BEARING, BALL 6201 ECH-9403536201
...
15
SEAL, OIL 12 ECH-10021305530
...
16
KEY ECH-10014200310
...
17
RING, SNAP ECH-10001504630
...
18
PIN, PISTON ECH-10001310210
...
19
PISTON KIT ECH-10000006521
...
20
RING, PISTON ECH-10001105330
...
21
GASKET, CLY.BASE ECH-10101004921
...
22
CYLINDER ECH-10101109320
...
23
SCREW 6x20 ECH-90024206020
...
24
COVER, CYLINDER ECH-10151406520
...
25
SCREW 5x10 ECH-90024205010
...
26
SEAL, DUST ECH-10061606320
...
27
SCREW 4x14 ECH-90024504014
...
28
BOLT, STUD ECH-10101400560
...
xx
MUFFLER KIT Includes items 29, 30 and 33 thru 36 ECH-14580306522
...
29
GASKET, MUFFLER ECH-14551009031
...
30
MUFFLER ECH-14580606520
...
33
SCREEN, SPARK ARRESTER ECH-14586206520
...
34
SCREEN HOLDER ECH-14580928430
...
35
SCREW 4x10 ECH-90024204010
...
36
COVER, MUFFLER ECH-14562106520
...
31
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
32
NUT, LOCK M5 ECH-90056000005
...
43
PAWL ASSY, STARTER ECH-17730504920
...
44
NUT 8x1.25 ECH-90050200008
...
44
STARTER ASSY Includes items 37 and 46 thru 52 ECH-17720007421
...
37
SCREW 4x10 ECH-90024204010
...
46
WASHER ECH-17721420430
...
47
REEL, ROPE ECH-17721504920
...
48
ROPE, STARTER 3.0x850 RePower BULK OPTION: 99944445000 ECH-17722606530
...
49
GRIP, STARTER ECH-17722806530
...
50
GUIDE, ROPE ECH-17722705330
...
51
SPRING, RECOIL ECH-17722006530
...
52
CASE, STARTER ECH-17720907420
...
53
SCREW 4x20 ECH-90024204020
...
54
LABEL - ECHO ECH-X502000320
...
55
BRACKET, FUEL TANK ECH-13191807320
...
xx
CAP ASSY Includes items 56 thru 59 ECH-13100406320
...
56
FILTER, CHECK VALVE ECH-13131505020
...
57
VENT ASSY ECH-13131406320
...
58
CAP ASSY ECH-13100406320
...
59
PACKING ECH-13101604920
...
60
TANK, FUEL ECH-13101007320
...
61
GASKET ECH-13001021631
...
62
INSULATOR, INTAKE ECH-13001701260
...
63
GASKET ECH-13001604922
...
64
CARBURETOR - WA-141 ECH-12300024430
...
65
GROMMET ECH-13211504920
...
66
PIPE, FUEL 3x5x150 BLACK RePower BULK OPTION: 90014 ECH-13201004921
...
67
FILTER, FUEL ECH-A369000480
...
68
CUSHION ECH-13192407320
...
73
CASE, AIR FILTER Includes items 74 ECH-13030104920
...
74
GROMMET ECH-17881004920
...
75
WASHER 5.2x8x0.8T ECH-17851600830
...
76
SHUTTER, CHOKE ECH-17851504920
...
77
SCREW 5x57 ECH-90024205057
...
78
FILTER, AIR, FELT ECH-13031003060
...
79
SCREW 4x12 ECH-90024204012
...
80
CLAMP ECH-15911007420
...
81
COIL, IGNITION ECH-15662607420
...
82
FLYWHEEL ECH-15680007420
...
83
COIL, IGNITION ECH-15660107421
...
84
CAP, SPARK PLUG ECH-15901201620
...
85
TERMINAL, SPARK PLUG ECH-15901103432
...
86
SPARK PLUG - CJ8 ECH-CJ8
...
88
PLATE, CLUTCH ECH-17501904920
...
89
SHOE, CLUTCH ECH-17500905131
...
90
SPRING, CLUTCH ECH-17501805130
...
91
BOSS, CLUTCH ECH-17501604920
...
92
DRUM, CLUTCH ECH-17501004920
...
93
RING, SNAP 32 ECH-90070200032
...
94
BEARING, BALL 6201 ECH-90081206201
...
95
RING, SNAP 12 ECH-90070100012
...
96
STOPPER ECH-175053-04920
...
97
PLUG ECH-10153807420
...
98
CASE, FAN ECH-10151106520
...
99
SWITCH, IGNITION ECH-16340006520
...
101
WASHER, SPRING 5 ECH-90060500005
...
102
BOLT 5x25 ECH-90015105025
...
103
BRACKET, SWITCH ECH-16381006520
...
...
...
...
...
