Echo SRM-2000 Brushcutter

Model: SRM-2000

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

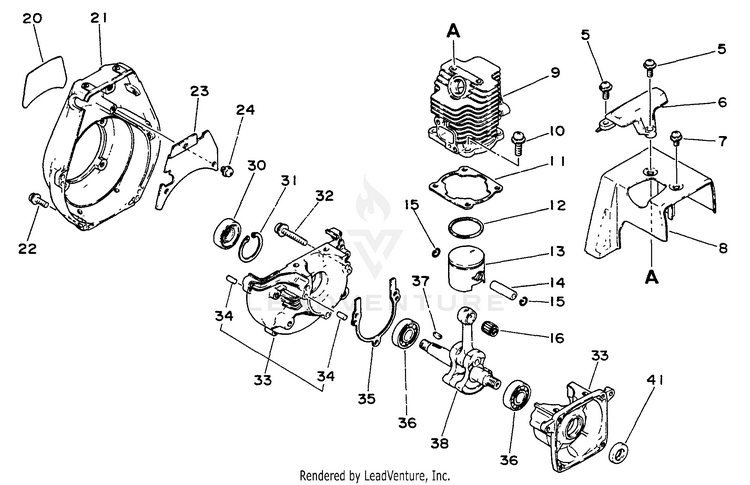

Engine, Crankcase, Fan Housing, Cover

...
...
5
SCREW 4x14 ECH-90023804014
...
6
GUARD, TOP ECH-15990540630
...
7
SCREW 4x10 ECH-90023804010
...
8
COVER, ENGINE ECH-10151449130
...
9
CYLINDER ECH-10101140630
...
10
SCREW 5x16 ECH-90023805016
...
11
GASKET, CYLINDER ECH-10101028231
...
12
RING, PISTON ECH-10001105330
...
13
PISTON KIT ECH-10000040631
...
14
PIN, PISTON ECH-10001322330
...
15
RING, SNAP ECH-10001504630
...
16
BEARING, NEEDLE 8 ECH-V553000040
...
20
LABEL - MODEL ECH-89011540730
...
21
COVER, FAN ECH-10151149130
...
22
SCREW 4x16 ECH-90023804016
...
23
PLATE, GUIDE ECH-10153440630
...
24
SCREW 4x8 ECH-90023804008
...
30
SEAL, OIL 12 ECH-10021228230
...
31
RING, SNAP 28 ECH-90070200028
...
32
SCREW 5x28 ECH-90023805028
...
33
CRANKCASE KIT ECH-10020028230
...
34
PIN, LOCATING 4 ECH-V622000020
...
35
GASKET, CRANKCASE ECH-10024228230
...
36
BEARING, BALL 6001 ECH-90080036001
...
37
KEY, WOODRUFF ECH-10014212330
...
38
CRANKSHAFT ASSY ECH-10010040632
...
41
SEAL, OIL 12 ECH-V505000140
...
...
...
...
...
