Echo SRM-2000 Brushcutter

Model: SRM-2000

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

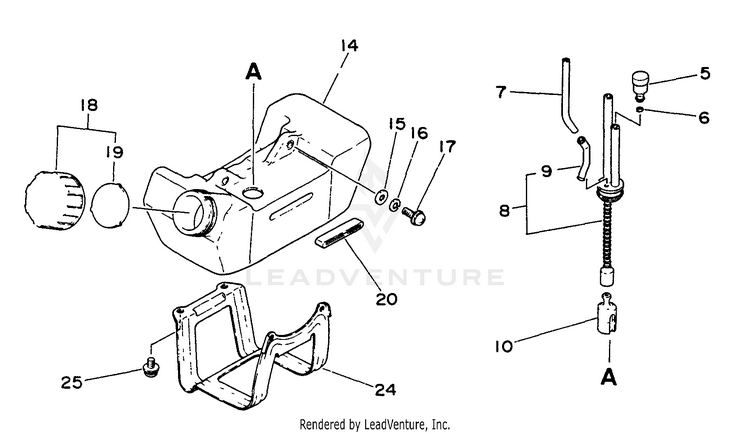

Fuel System

...
...
5
VENT ASSY ECH-13130056431
...
6
CLIP 5.5 ECH-13011100530
...
7
PIPE, FUEL 3x6x75 CLEAR RePower BULK OPTION: 90017 ECH-V471006080
...
8
PIPE KIT, FUEL ECH-13200240630
...
9
CONNECTOR, PIPE ECH-13202140630
...
10
FILTER, FUEL ECH-A369000480
...
14
TANK, FUEL ECH-13100540530
...
15
WASHER 5.5x12x0.8 ECH-90060300005
...
16
WASHER, SPRING 5 ECH-90060500005
...
17
SCREW 5x16 ECH-90022005016
...
18
FUEL CAP ASSY ECH-P200000820
...
19
GASKET ECH-13101640630
...
20
CUSHION, FUEL TANK ECH-13192040630
...
24
GUARD, FUEL TANK ECH-30511040630
...
25
SCREW 5x10 ECH-90023805010
...
...
...
...
...
