Echo SRM-2000 Brushcutter

Model: SRM-2000

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

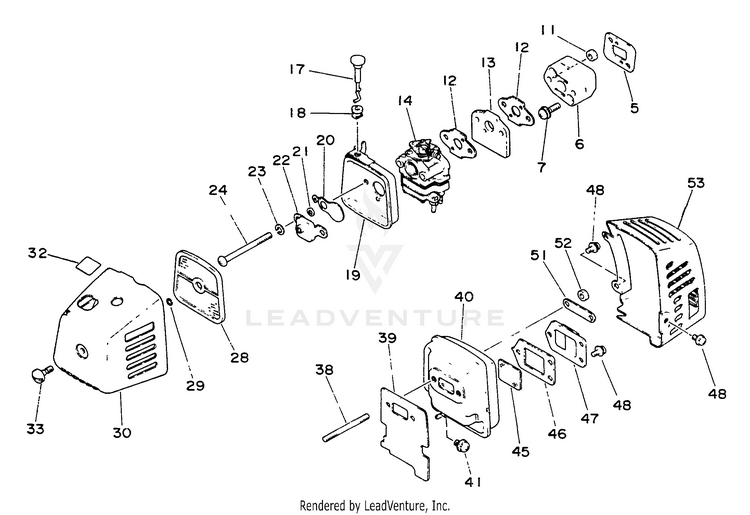

Intake, Exhaust, Air Cleaner

...
...
5
GASKET ECH-13001028231
...
6
INSULATOR ECH-13001740630
...
7
SCREW 5x20 ECH-90023805020
...
11
NUT M5 ECH-90050000005
...
12
GASKET, INTAKE ECH-13001640631
...
13
PLATE ECH-13002640630
...
14
CARBURETOR - WY-18 ECH-12300040630
...
17
ROD, CHOKE ECH-17851049130
...
18
GROMMET, CHOKE ECH-17881005230
...
19
CASE, AIR FILTER ECH-13031440630
...
20
SHUTTER, CHOKE ECH-17851540630
...
21
WASHER 5.2x8x0.8T ECH-17851600830
...
22
PLATE ECH-12900640630
...
23
WASHER, SPRING 5 ECH-90060500005
...
24
SCREW 5x60 ECH-90024105060
...
28
FILTER, AIR ECH-13031040630
...
30
COVER ASSY, AIR FILTER ECH-13030240630
...
29
O-RING ECH-90072000004
...
33
SCREW ECH-13041540630
...
32
LABEL - CHOKE ECH-X506000070
...
38
BOLT, STUD ECH-10101400560
...
39
GASKET ECH-14551040631
...
40
MUFFLER ECH-14580640630
...
41
SCREW 5x10 ECH-90023805010
...
45
SCREEN, SPARK ARRESTER ECH-14586240630
...
46
GASKET, EXHAUST ECH-14586640631
...
47
LID, MUFFLER ECH-14580940630
...
48
SCREW 4x10 ECH-90023804010
...
51
WASHER ECH-14564204930
...
52
NUT, LOCK M5 ECH-90056000005
...
53
COVER, EXHAUST ECH-14587140630
...
...
...
...
...
