Echo SRM-2000 Brushcutter

Model: SRM-2000

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

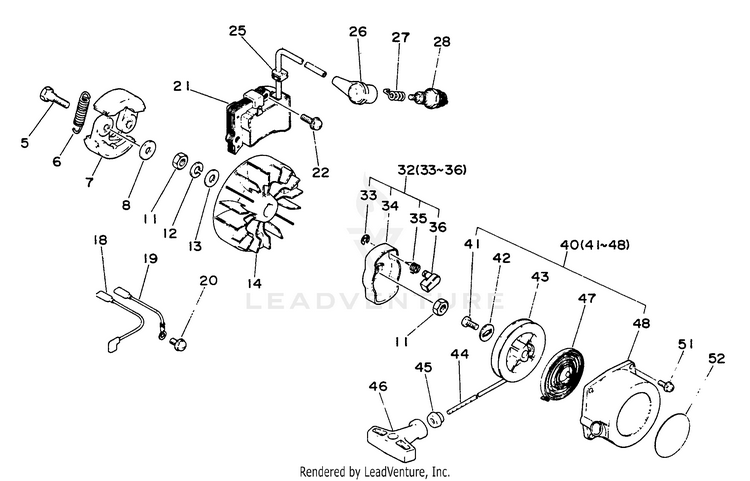

Clutch, Ignition, Starter

...
...
5
BOLT, CLUTCH ECH-17504622332
...
6
SPRING, CLUTCH ECH-17501805535
...
7
SHOE, CLUTCH ECH-17500955931
...
8
WASHER 6.2x19x1.0 ECH-17504805530
...
11
NUT 8x1.25 ECH-90050200008
...
12
WASHER, SPRING 8 ECH-90060500008
...
13
WASHER 8.5x16x1.2 ECH-90060000008
...
14
FLYWHEEL ECH-15680128230
...
18
LEAD ECH-15663040630
...
19
LEAD - GROUND ECH-15663540630
...
20
SCREW 5x10 ECH-90023805010
...
21
COIL, IGNITION ECH-15660140730
...
22
SCREW 5x20 ECH-90023805020
...
25
GROMMET ECH-15611240630
...
26
CAP, SPARK PLUG ECH-15901203433
...
27
TERMINAL, SPARK PLUG ECH-15901103432
...
28
SPARK PLUG - BPMR7A ECH-15901010230
...
32
PAWL ASSY, STARTER ECH-A052000030
...
33
RING, RETAINING - 6 ECH-90070000006
...
34
PAWL ASSY, STARTER ECH-A052000030
...
35
SPRING, RETURN ECH-17723440630
...
36
PAWL, STARTER ECH-17721840630
...
40
STARTER ASSY ECH-17720049130
...
41
SCREW ECH-17723640630
...
42
WASHER ECH-P022022280
...
43
REEL, ROPE ECH-17721540630
...
44
ROPE, STARTER 3.5x850 RePower BULK OPTION: 99944445000 ECH-17722603930
...
45
GUIDE, ROPE ECH-17722705530
...
46
GRIP, STARTER ECH-17722806530
...
47
SPRING, RECOIL ECH-17722040630
...
48
CASE, RECOIL STARTER ECH-17723240630
...
51
SCREW 4x14 ECH-90023804014
...
52
LABEL - ECHO ECH-89011226730
...
...
...
...
...
