Echo SRM-2000 Brushcutter

Model: SRM-2000

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

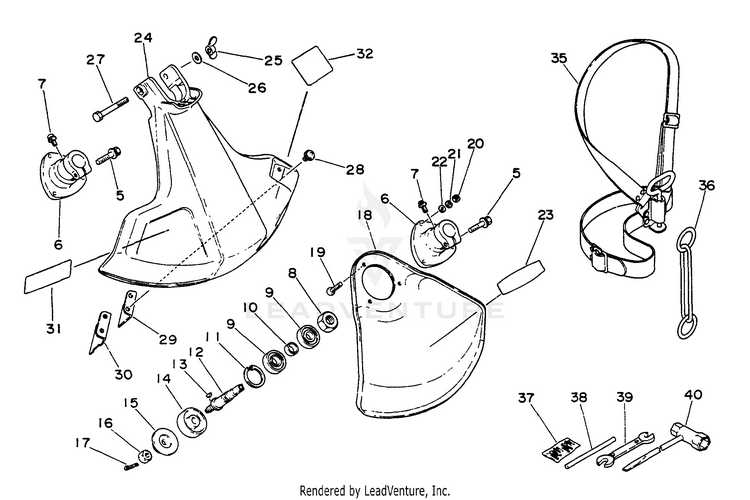

Shield, Gear Case, Harness, Tools

...
...
6
GEAR CASE ASSY ECH-61040023330
...
5
BOLT - 5x25 ECH-90015205025
...
6
CASE, BEARING ECH-61041023330
...
7
SCREW 4x10 ECH-90024204010
...
8
NUT 12 L.H. ECH-90051300012
...
9
BEARING, BALL ECH-9404206001
...
10
SPACER ECH-61031506530
...
11
RING, SNAP 28 ECH-90070200028
...
12
GEAR, SHAFT ECH-61031023330
...
13
KEY, WOODRUFF ECH-61032502730
...
14
PLATE, ADAPTOR - UPPER ECH-61031306530
...
15
PLATE, ADAPTOR - LOWER ECH-61031406030
...
16
NUT ECH-61032023330
...
17
PIN, COTTER 2x22 BULK OPTION: 89850201130 - 10 PACK ECH-90030020022
...
18
SHIELD ECH-69901007330
...
19
SCREW 4x18 ECH-90022004018
...
20
NUT ECH-900500-00004
...
21
WASHER, SPRING 4 ECH-900605-00004
...
22
WASHER 4 MM ECH-90060000004
...
23
LABEL - ECHO ECH-X502000320
...
24
SHIELD ASSY, DEBRIS ECH-P021053910
...
25
NUT, WING 6 ECH-90052500006
...
26
WASHER 6.5x11.5x0.8 ECH-90060000006
...
27
BOLT - 6x50 ECH-90010006050
...
28
SCREW 5x16 ECH-90024205016
...
29
CUTTER KIT ECH-P021006080
...
30
PROTECTOR ECH-69921223230
...
31
LABEL - ECHO ECH-X502000320
...
32
LABEL - CAUTION ECH-89017740730
...
35
HARNESS ASY ECH-30100055232
...
36
RING, HARNESS ECH-30130524330
...
37
PIN, COTTER 2x22 (PKG. OF 10) 10pcs. ECH-89850201130
...
38
TOOL, LOCKING 5x120 MM ECH-89751801131
...
39
SPANNER 8x10 ECH-89511200330
...
40
T-WRENCH 17x19 L200 ECH-X602000020
...
...
...
...
...
