Echo SRM-2000 Brushcutter

Model: SRM-2000

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

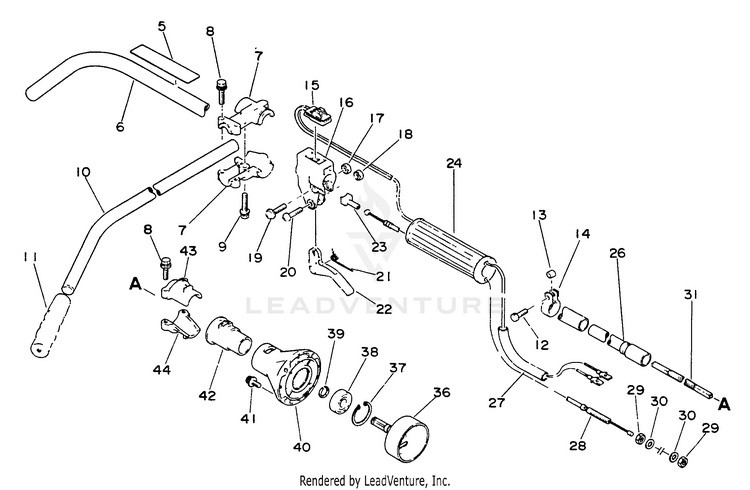

Driveshaft, Throttle, Stop Switch, Handles, Clutch Housing

...
...
5
LABEL ECH-89016025131
...
6
MAIN PIPE ASSY ECH-61060944530
...
7
BRACKET, HANDLE ECH-35160140730
...
8
BOLT - 5x25 ECH-90014205025
...
9
BOLT 5x28 ECH-90014205028
...
10
HANDLE ECH-35161009930
...
11
GRIP ECH-35121305930
...
12
BOLT 5x18 ECH-90010005018
...
13
SPACER ECH-69901203330
...
14
HOOK ECH-30120723330
...
15
IGNITION SWITCH ASSY ECH-16340049130
...
16
BRACKET, THROTTLE ECH-17802409630
...
17
NUT M5 ECH-90050000005
...
18
NUT, LOCK M5 ECH-90056000005
...
19
SCREW 5x28 ECH-90024005028
...
20
SCREW ECH-17811005330
...
21
SPRING, THROTTLE ECH-17804306930
...
22
TRIGGER, THROTTLE ECH-C450000060
...
23
GUIDE, CABLE ECH-17804805630
...
24
GRIP ECH-35111144530
...
26
LINER ECH-61021723330
...
27
TUBE - VINYL ECH-17812740630
...
28
CABLE, THROTTLE ECH-17800140630
...
29
NUT M6 ECH-90050200006
...
30
WASHER 6.5x11.5x0.8 ECH-90060000006
...
31
DRIVESHAFT - FLEXIBLE ECH-C506000090
...
36
DRUM, CLUTCH ECH-17500540630
...
37
RING, SNAP 32 ECH-90070200032
...
38
BEARING, BALL 6201 ECH-90081206201
...
39
RING, SNAP 12 ECH-90070600012
...
40
FLANGE, DRIVESHAFT ECH-61022340630
...
41
SCREW 5x16 ECH-90024205016
...
42
CUSHION ECH-61091040630
...
43
HOLDER, MAIN PIPE ECH-61092240630
...
44
HOLDER, HOUSING ECH-61092340630
...
...
...
...
...
