Echo SRM-2000 Brushcutter

Model: SRM-2000

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

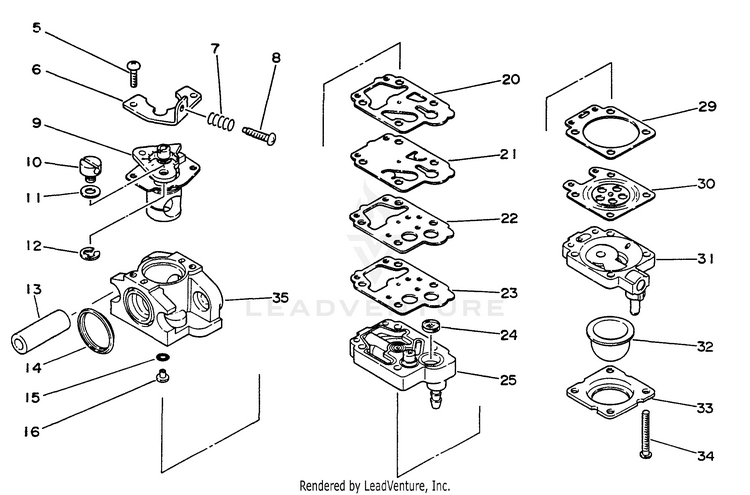

Carburetor

...
...
xx
CARBURETOR - WY-18 ECH-12300040630
...
5
SCREW ECH-12311440630
...
6
BRACKET, IDLE ADJUST ECH-12312840630
...
7
SPRING ECH-12313326030
...
8
SCREW ECH-12313440030
...
9
VALVE, THROTTLE ECH-12311640630
...
10
SWIVEL ECH-12317226030
...
11
WASHER ECH-12314926030
...
12
E-RING ECH-12317307930
...
13
SLEEVE, MOUNTING ECH-12315840630
...
14
SEAL Included in Carburetor repair kit P/N 12310040630 & Carburetor diaphragm/gasket kit P/N 12310140630 ECH---
...
15
O-RING Included in Carburetor repair kit P/N 12310040630 ECH---
...
16
JET Included in Carburetor repair kit P/N 12310040630 ECH---
...
------------------
GASKET, PUMP Included in Carburetor repair kit P/N 12310040630 & Carburetor diaphragm/gasket kit P/N 12310140630 ECH---
...
------------------
DIAPHRAGM, PUMP Included in Carburetor repair kit P/N 12310040630 & Carburetor diaphragm/gasket kit P/N 12310140630 ECH---
...
22
COVER, PUMP ECH-12316040630
...
23
GASKET, PLATE Included in Carburetor repair kit P/N 12310040630 & Carburetor diaphragm/gasket kit P/N 12310140630 ECH---
...
24
STRAINER Included in Carburetor repair kit P/N 12310040630 ECH---
...
25
BASE, PURGE Included in Carburetor repair kit P/N 12310040630 ECH---
...
29
GASKET, METERING Included in Carburetor repair kit P/N 12310040630 & Carburetor diaphragm/gasket kit P/N 12310140630 ECH---
...
30
DIAPHRAGM, METERING Included in Carburetor repair kit P/N 12310040630 & Carburetor diaphragm/gasket kit P/N 12310140630 ECH---
...
31
BODY ASSY, PURGE ECH-12318046130
...
32
BULB, PURGE ECH-12318140630
...
33
RETAINER, PURGE BULB ECH-12314202960
...
34
SCREW ECH-12311040630
...
35
BODY, CARBURETOR NOT AVAILABLE SEPARATELY ECH---
...
xx
REPAIR KIT, CARBURETOR ECH-12310040630
...
xx
DIAPHRAGM KIT ECH-12310140630
...
...
...
...
...
