Echo SRM-1501 S/N: 0135001 - 999999 Brushcutter

Model: SRM-1501 S/N: 0135001 - 999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

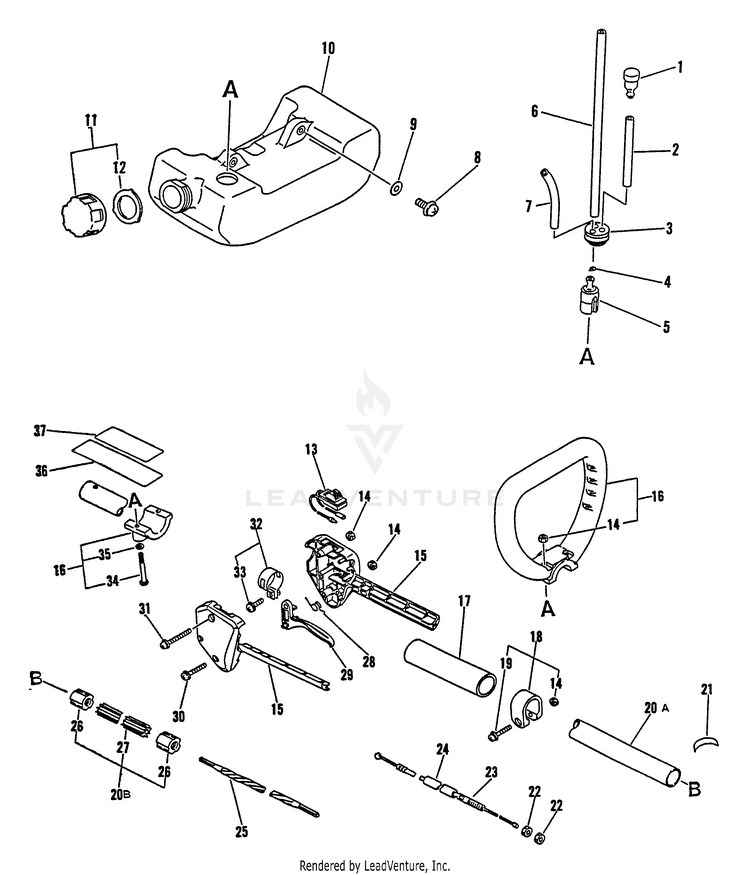

Fuel System, Main Pipe, Support Handle, Throttle Control

...
...
1
VENT ASSY ECH-13130056431
...
2
PIPE, FUEL 3x5x70 BLACK ECH-V471001201
...
3
GROMMET, FUEL 5 ECH-13211546730
...
4
CLIP 6 MM ECH-13201309820
...
5
FILTER, FUEL ECH-A369000480
...
6
PIPE, FUEL 3x5x180 BLACK ECH-V471001191
...
7
PIPE, RETURN, FUEL, 3X6X90 ECH-V471006160
...
8
SCREW 5x16 ECH-90023805016
...
9
TANK, FUEL ECH-13100544332
...
10
FUEL CAP ASSY ECH-P200000830
...
11
FUEL CAP ASSY Includes Item 12 ECH-P200000830
...
12
GASKET, FUEL CAP ECH-13101640930
...
13
SWITCH ASSY, ON-OFF ECH-16340155631
...
14
NUT M5 ECH-90050000005
...
15
HANDLE KIT, CONTROL Includes Items 14, 30-31 ECH-17800352130
...
16
HANDLE ASSY - LOOP Includes Items 14, 34-35 ECH-35120108930
...
17
GRIP, HANDLE ECH-35121352130
...
18
CLAMP KIT Includes Items 14, 19 ECH-61027252130
...
19
SCREW 5x30 ECH-90024205030
...
20
MAIN PIPE ASSY 25x1500 Includes Items 25-27 ECH-61060944730
...
21
LABEL - ALIGNMENT ECH-89015204930
...
22
NUT M6 ECH-90050200006
...
23
CABLE, THROTTLE ECH-17800144430
...
24
PIPE ECH-17812750330
...
25
DRIVESHAFT - FLEXIBLE ECH-C506000390
...
26
STOPPER ECH-61024644730
...
27
LINER, FLEXIBLE ECH-C507000430
...
28
SPRING, TORSION ECH-17804342230
...
29
TRIGGER, THROTTLE ECH-17801052130
...
30
SCREW 5x25 ECH-90024205025
...
31
SCREW 5x35 ECH-90024205035
...
32
CLAMP KIT Includes Item 33 ECH-30120029431
...
33
SCREW 5x14 ECH-90024205014
...
34
SCREW 5x40 ECH-90022005040
...
35
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
36
LABEL - CAUTION ECH-89016049730
...
37
LABEL - CAUTION ECH-X505009800
...
...
...
...
...
