Echo SRM-1501 S/N: 0135001 - 999999 Brushcutter

Model: SRM-1501 S/N: 0135001 - 999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

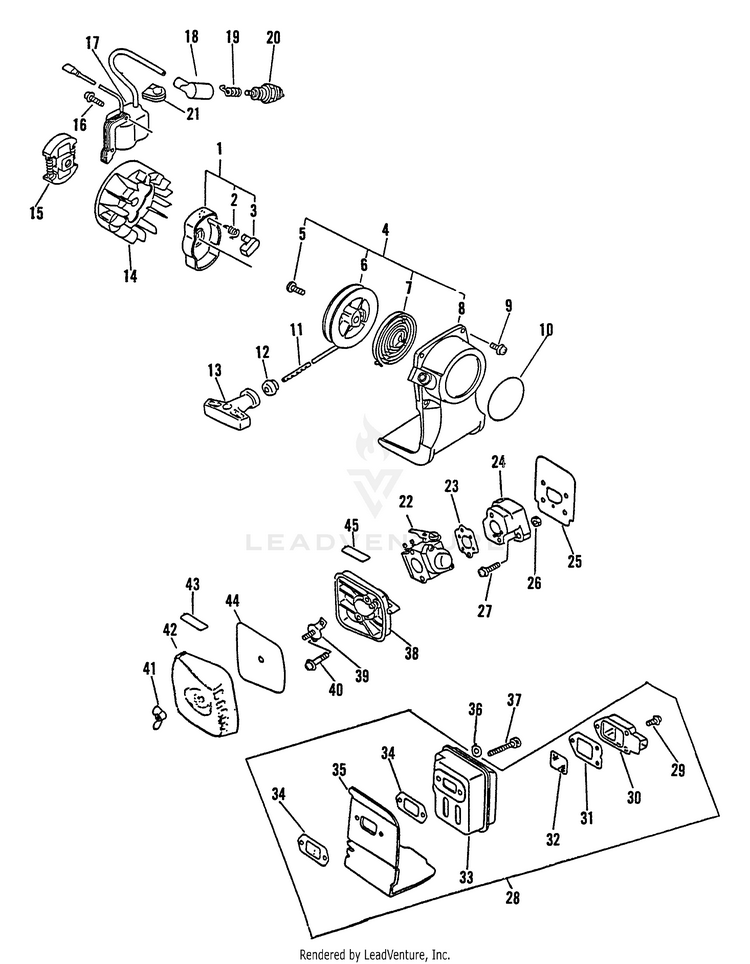

Clutch, Ignition, Starter, Intake, Exhaust

...
...
1
PAWL ASSY, STARTER Includes Items 2-3 ECH-17720212220
...
2
SPRING, RETURN ECH-17723412220
...
3
PAWL, STARTER - BLACK ECH-17721844330
...
4
STARTER ASSY Includes Items 5-8, 11-13 ECH-17720054130
...
5
SCREW ECH-17723644330
...
6
REEL, ROPE ECH-17721544430
...
7
SPRING, RECOIL ECH-P022019680
...
8
CASE, RECOIL STARTER ECH-17723244333
...
9
SCREW 4x16 ECH-90023804016
...
10
LABEL - STARTER - ECHO ECH-X502000330
...
11
ROPE, STARTER ECH-P022006800
...
12
GUIDE, ROPE ECH-17722742030
...
13
GRIP, STARTER ECH-17722806530
...
14
FLYWHEEL ECH-15680144731
...
15
CLUTCH ASSY ECH-17500056831
...
16
SCREW 4x22 ECH-90023804022
...
17
COIL, IGNITION ECH-15660144732
...
18
CAP, SPARK PLUG ECH-15901201620
...
19
TERMINAL, SPARK PLUG ECH-15901103432
...
20
SPARK PLUG - BPMR7A ECH-15901010230
...
21
GROMMET ECH-15611240630
...
22
CARBURETOR ECH-12520050633
...
23
GASKET, INTAKE Use Kit 88900042031 ECH-13001642031
...
24
INSULATOR, INTAKE ECH-13001742031
...
25
HEAT SHIELD, INTAKE Use Kit 88900042031 ECH-13001042032
...
26
NUT M5 ECH-90050000005
...
27
SCREW 5x20 ECH-90023805020
...
28
MUFFLER Includes Items 29-35 ECH-14580642030
...
29
SCREW 4x10 ECH-90023804010
...
30
COVER, MUFFLER ECH-145809-42030
...
31
GASKET, EXHAUST Use Kit 88900042031 ECH-14586642031
...
32
SCREEN, SPARK ARRESTER ECH-14586240630
...
33
MUFFLER ECH---
...
34
GASKET, EXHAUST Use Kit 88900042031 ECH-V104000160
...
35
HEAT SHIELD, EXHAUST ECH-A320000251
...
36
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
37
BOLT 5x55 ECH-90010505055
...
38
CASE, AIR FILTER ECH-13030705361
...
39
PLATE, PREVENT ECH-12901105060
...
40
SCREW 5x64 ECH-90024205064
...
41
WINGNUT - 6 ECH-90052800005
...
42
COVER, AIR FILTER ECH-13031344331
...
43
LABEL - TOP ECH-89018706960
...
44
FILTER, AIR ECH-13031004560
...
45
LABEL - CHOKE ECH-89012105360
...
xx
GASKET KIT See Maintenance Kits ECH-88900042036
...
...
...
...
...
