Echo SRM-140DA Brushcutter

Model: SRM-140DA

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

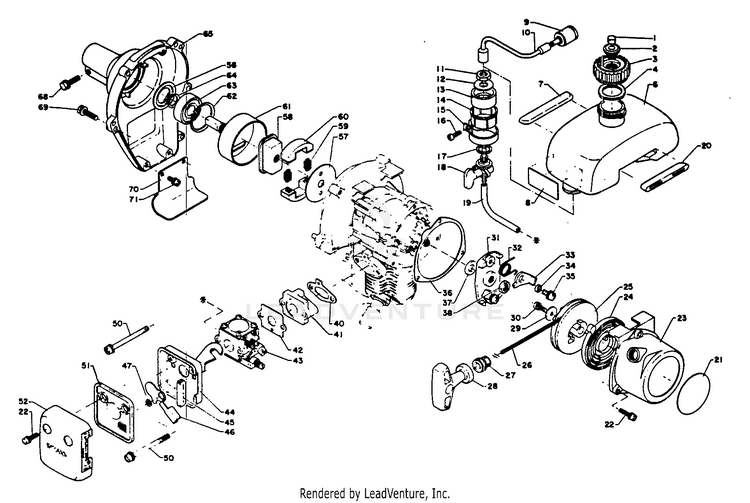

Clutch, Exhaust, Fan Case, Fuel System, Intake, Starter

...
...
xx
CAP ASSY Includes items 1 thru 4 ECH-13100406320
...
1
FILTER, CHECK VALVE ECH-13131505020
...
2
VENT ASSY ECH-13131406320
...
3
CAP, FUEL ECH-1311707430
...
4
PACKING ECH-13101604920
...
6
FUEL TANK KIT ECH-13100207330
...
7
CUSHION ECH-13192007330
...
8
LABEL - FUEL VALVE ECH-89015906530
...
9
FILTER, FUEL ECH-A369000480
...
10
PIPE, FUEL ITEM IS NO LONGER AVAILABLE ECH-13201004630
...
11
NUT 8x1.25 ECH-90050200008
...
12
WASHER ECH-13221706530
...
13
SEAL ECH-13222005020
...
14
COLLAR ECH-13221907330
...
15
CLAMP ECH-13250506530
...
16
SCREW 4x14 ECH-90022004014
...
17
GASKET ECH-13221806530
...
18
FUEL VALVE ASSY ECH-13220006530
...
19
PIPE, FUEL 3x6x85 BLACK ECH-13201006531
...
20
CUSHION ECH-13192407330
...
22
SCREW 4x20 ECH-90024204020
...
21
LABEL - ECHO ECH-X502000320
...
xx
STARTER ASSY Includes items 23 thru 30 ECH-17720006030
...
23
CASE, STARTER ECH-17720906030
...
24
SPRING, RECOIL ECH-17722006530
...
25
REEL, ROPE ECH-17721506530
...
26
ROPE, STARTER 3.0x850 RePower BULK OPTION: 99944445000 ECH-17722606530
...
27
GUIDE, ROPE ECH-17722705330
...
28
GRIP, STARTER ECH-17722806530
...
29
WASHER 4.1x15.5x1T ECH-17721404630
...
30
SCREW 4x10 ECH-90024204010
...
31
PAWL CATCHER ECH-17721006530
...
32
SPRING ECH-17723406530
...
33
RATCHET ECH-17721806530
...
34
SPACER 5.2x8x2.1 ECH-17724704630
...
35
SCREW 5x10 ECH-90024205010
...
36
GASKET, STARTER ECH-10061506530
...
37
WASHER ECH-10014605930
...
38
NUT 8 ECH-90051200008
...
40
GASKET, INTAKE ECH-13001006530
...
41
INSULATOR, INTAKE ECH-13001707330
...
42
PACKING ECH-13001606531
...
43
CARBURETOR - WA-80 ECH-12300006320
...
44
CASE, AIR FILTER Includes ITEM 45 ECH-13030105021
...
45
GROMMET ECH-17881005020
...
46
SHUTTER, CHOKE ECH-17851506530
...
47
WASHER 5.2x8x0.8T ECH-17851600830
...
50
SCREW 5x57 ECH-90024205057
...
51
FILTER, AIR ECH-13031006530
...
52
COVER, AIR FILTER ECH-13031305020
...
56
STOPPER ECH-175053-04920
...
57
PLATE, CLUTCH ECH-17501906530
...
58
HUB, CLUTCH ECH-17501607330
...
59
SPRING, CLUTCH ECH-17501806530
...
60
SHOE, CLUTCH ECH-17501704631
...
61
DRUM, CLUTCH ECH-17501007330
...
62
RING, SNAP 32 ECH-90070200032
...
63
BEARING, BALL 6201 ECH-90081206201
...
64
RING, SNAP 12 ECH-90070100012
...
65
CASE, FAN ECH-10151107330
...
68
BOLT 5x20 ECH-90014205020
...
69
SCREW 5x22 ECH-90024205022
...
70
BRACKET ECH-30511007331
...
71
SCREW 4x10 ECH-90024204010
...
...
...
...
...
