Echo SRM-140DA Brushcutter

Model: SRM-140DA

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

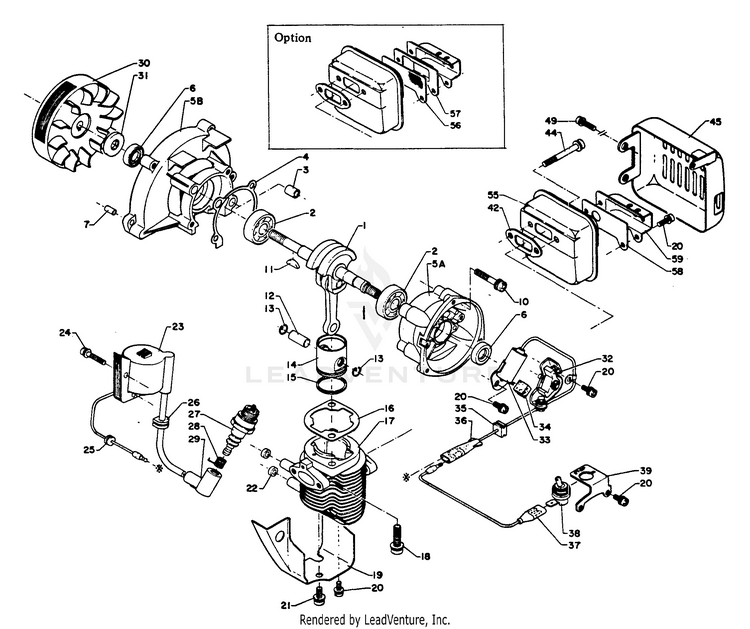

Engine, Crankcase, Ignition

...
...
1
CRANKSHAFT ASSY ECH-10010007330
...
2
BEARING, BALL 6200 ECH-90081036200
...
4
GASKET, CRANKCASE ECH-10024205931
...
5
CRANKCASE KIT Includes items 3, 5A, 5B and 7 ECH-10020005932
...
5A
CRANKCASE KIT See Ref No. 5, Crankcase Set, P/N 10020005932 ECH-10020005932
...
5B
CRANKCASE KIT See Ref No. 5, Crankcase Set, P/N 10020005932 ECH-10020005932
...
3
PIN, DOWEL ECH-10021505730
...
7
PIN, LOCATING 5x10 ECH-10021502830
...
6
SEAL, OIL ECH-10021305930
...
10
SCREW 5x30 ECH-90024205030
...
11
KEY ECH-10014200330
...
12
PIN, PISTON ECH-10001304920
...
13
RING, SNAP ECH-10001504630
...
14
PISTON ECH-10001007330
...
15
RING, PISTON ECH-10001105930
...
16
GASKET, CYLINDER ECH-10101005930
...
17
CYLINDER ECH-10101107330
...
18
SCREW 6x22 ECH-90024206022
...
19
COVER, ENGINE ECH-10151407330
...
20
SCREW 4x10 ECH-90024204010
...
21
SCREW 5x10 ECH-90024205010
...
22
SPACER ECH-15211705930
...
23
IGNITION COIL ECH-15612606421
...
24
SCREW 4x22 ECH-90024204022
...
25
GROMMET ECH-15211505930
...
26
BUSHING ECH-15211207331
...
27
FLYWHEEL ECH-159010-00330
...
28
TERMINAL, SPARK PLUG ECH-15901103432
...
29
CAP, SPARK PLUG ECH-15901201620
...
30
FLYWHEEL ECH-15620006420
...
31
WASHER ECH-10013206530
...
32
CONTACT POINT SET ECH-15210105930
...
33
CONDENSER ECH-15212705530
...
34
PAD, OIL ECH-15613404630
...
35
GROMMET ECH-15211405530
...
36
CORD, PRIMARY ECH-15213305530
...
37
LEAD - GROUND ECH-15613106530
...
42
GASKET, EXHAUST ECH-14551005930
...
44
SCREW 5x40 ECH-90024205040
...
45
COVER, MUFFLER ECH-14562106420
...
49
SCREW 4x14 ECH-90024204014
...
xx
MUFFLER ASSY Includes items 20, 55, 58 and 59 ECH-14590006420
...
20
SCREW 4x10 ECH-90024204010
...
55
CASE, MUFFLER ECH-14580606420
...
58
GUIDE, EXHAUST - INNER ECH-14587506320
...
59
COVER, MUFFLER ECH-14580921930
...
38
SWITCH, IGNITION ECH-16340007330
...
39
BRACKET, SWITCH ECH-16381007330
...
56
SCREEN, SPARK ARRESTER OPTIONAL ECH-14586206321
...
57
COVER, MUFFLER OPTIONAL ECH-14580921930
...
...
...
...
...
