Echo SRM-140DA Brushcutter

Model: SRM-140DA

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

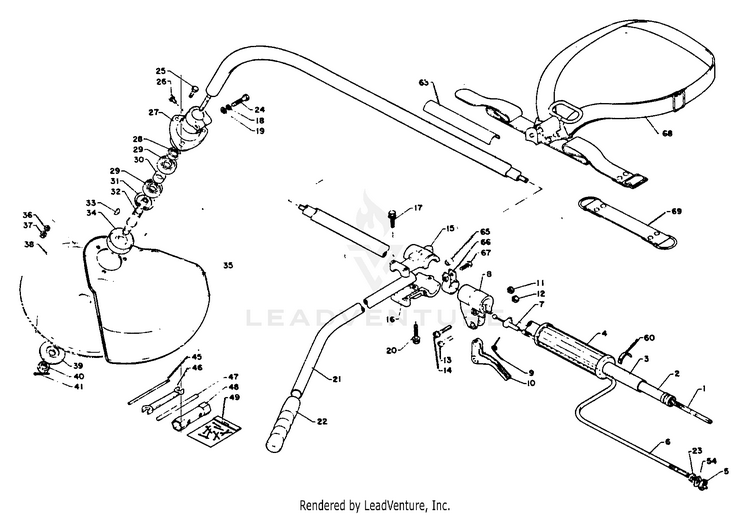

Driveshaft, Handles, Harness, Throttle, Gear Case, Shield, Tools

...
...
1
DRIVESHAFT ECH-61001306531
...
2
BUSHING ECH-61021706531
...
3
PIPE, MAIN ECH-61020607330
...
4
GRIP ECH-35101206530
...
5
NUT M6 ECH-90050200006
...
6
CABLE, THROTTLE ECH-17800106031
...
7
GUIDE, CABLE ECH-17804805630
...
8
BRACKET, TRIGGER ECH-17802406030
...
9
SPRING, THROTTLE ECH-17804306930
...
10
TRIGGER, THROTTLE ECH-C450000060
...
11
NUT M5 ECH-90050000005
...
12
NUT, LOCK M5 ECH-90056000005
...
13
SCREW ECH-17811005330
...
14
SCREW 5x28 ECH-90024005028
...
xx
BRACKET ASSY, HANDLE Includes 15 thru 17 and 20 ECH-35120207330
...
15
BRACKET, HANDLE ECH-35122507330
...
16
BRACKET, HANDLE ECH-35123207330
...
17
BOLT - 5x25 ECH-90014205025
...
20
BOLT 5x28 ECH-90014205028
...
18
WASHER, SPRING 5 ECH-90060500005
...
19
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
21
HANDLE ECH-35121007330
...
22
GRIP ECH-35121305930
...
23
NUT ECH-17802107330
...
24
BOLT - 5x25 ECH-90015005025
...
25
SCREW 4x18 ECH-90022004018
...
26
SCREW 4x10 ECH-90024204010
...
27
HOLDER, BEARING ECH-61041005930
...
28
NUT ECH-90050300012
...
29
BEARING, BALL ECH-9404206001
...
30
SPACER ECH-61031506530
...
31
RING, SNAP 28 ECH-90070200028
...
32
DRIVESHAFT ECH-61031006531
...
33
KEY, WOODRUFF ECH-61032502730
...
34
PLATE, ADAPTOR - UPPER ECH-61031306530
...
35
SHIELD ECH-69901007330
...
36
WASHER, SPRING 4 ECH-900605-00004
...
37
NUT ECH-900500-00004
...
38
UNKNOWN ECH---
...
39
PLATE, ADAPTOR - LOWER ECH-61031406030
...
40
NUT 10 ECH-90051100010
...
41
UNKNOWN ECH---
...
45
TOOL, LOCKING 5x120 MM ECH-89751801131
...
46
SPANNER 8x10 ECH-89511200330
...
47
ROD, HANDLE ECH-89541200230
...
48
WRENCH 17x19 ECH-89541905330
...
49
PIN, COTTER 2x22 (PKG. OF 10) ECH-89850201130
...
54
WASHER 6.5x11.5x0.8 ECH-90060000006
...
60
UNKNOWN ECH---
...
63
UNKNOWN ECH---
...
65
SPACER ECH-69901203330
...
66
HANGER ECH-30120707330
...
67
BOLT - 5x14 ECH-90010005014
...
68
HARNESS ASY ECH-30100055232
...
69
STRAP ASSY, SHOULDER ECH-30130507530
...
...
...
...
...
