Echo SH-8000 S/N: E081543 -- 1992-1993 Models Chipper Shredder

Model: SH-8000 S/N: E081543 -- 1992-1993 Models

Save
 Part Not Listed?Part Not Listed?
product name

Accessories

...
...
xx
PROTECTIVE COVER ECH-99945000010
...
xx
FINE SCREEN 3/8" HOLE (3 8 5 HP) ECH-99945000020
...
xx
MEDIUM SCREEN 3/4" HOLE (3 & 5 HP) ECH-99945000030
...
xx
COARSE SCREEN 1-1/2" HOLE (3 & 5 HP) ECH-99945000040
...
xx
FINE SCREEN 3/8" HOLE (8 HP) ECH-99945000050
...
xx
MEDIUM SCREEN 3/4" HOLE (8 HP) ECH-99945000060
...
xx
COARSE SCREEN 1-1/2" HOLE (8 HP) ECH-99945000070
...
xx
TOW HITCH (NOT FOR HIGHWAY) ECH-99945000080
...
xx
LEAF TAMPER ECH-99945000090
...
xx
BAG, DEBRIS ECH-99945000100
...
xx
CHIPPER KNIFE KIT Includes Briggs & Stratton Air Filter Element, PTO Belt, Spark Plug & Knife Set ECH-99945000110
...
xx
3 HP ENGINE MAINTENANCE KIT Includes Briggs & Stratton Air Filter Element, PTO Belt, Spark Plug & Knife Set ECH-99945000120
...
xx
ENGINE MAINTENANCE KIT - 5 HP Includes Briggs & Stratton Air Filter Element, PTO Belt, Spark Plug & Knife Set ECH-99945000130
...
xx
ENGINE MAINTENANCE KIT - 8 HP Includes Briggs & Stratton Air Filter Element, PTO Belt, Spark Plug & Knife Set ECH-99945000140
...
xx
WET DEBRIS SCREEN (3 & 5 HP) ECH-99945100150
...
xx
WET DEBRIS SCREEN (8 HP) ECH-99941500160
...
xx
DUAL BELT KIT ECH-99945100170
...
xx
TOOL STEEL CHIPPER BLADE KIT ECH-99945100180
...
xx
BLOWER ATTACHMENT - 5 HP ECH-99945100190
...
xx
BLOWER ATTACHMENT - 8 HP ECH-99945100200

Blower Attachment

...
...
xx
BLOWER ATTACHMENT - 5 HP ECH-99945100190
...
xx
BLOWER ATTACHMENT - 8 HP ECH-99945100200

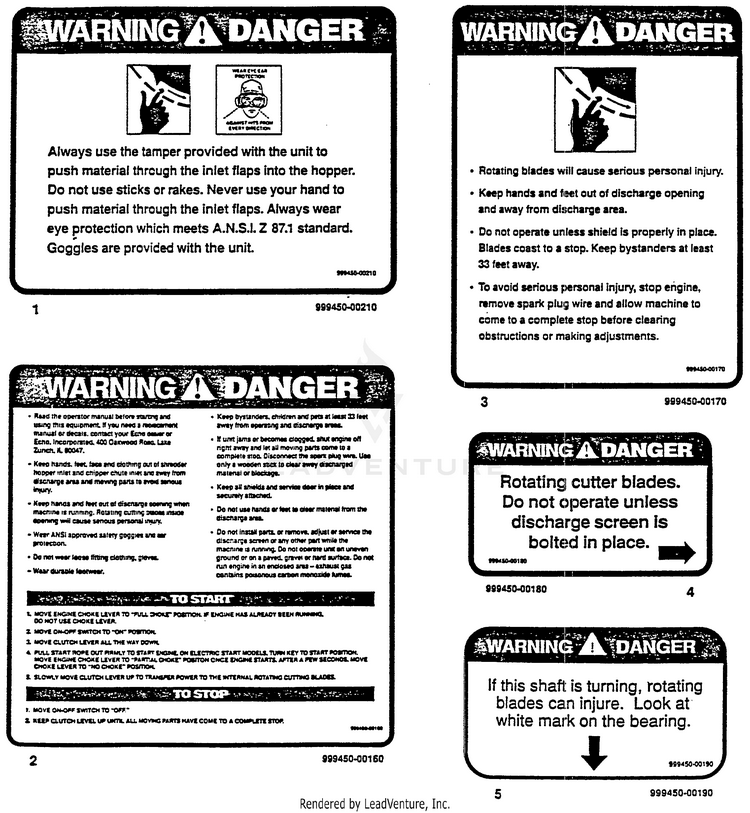

Decal Part 1

...
...
1
LABEL ECH-99945000210
...
2
LABEL ECH-99945000160
...
3
LABEL ECH-99945000170
...
4
LABEL ECH-99945000180
...
5
LABEL ECH-99945000190

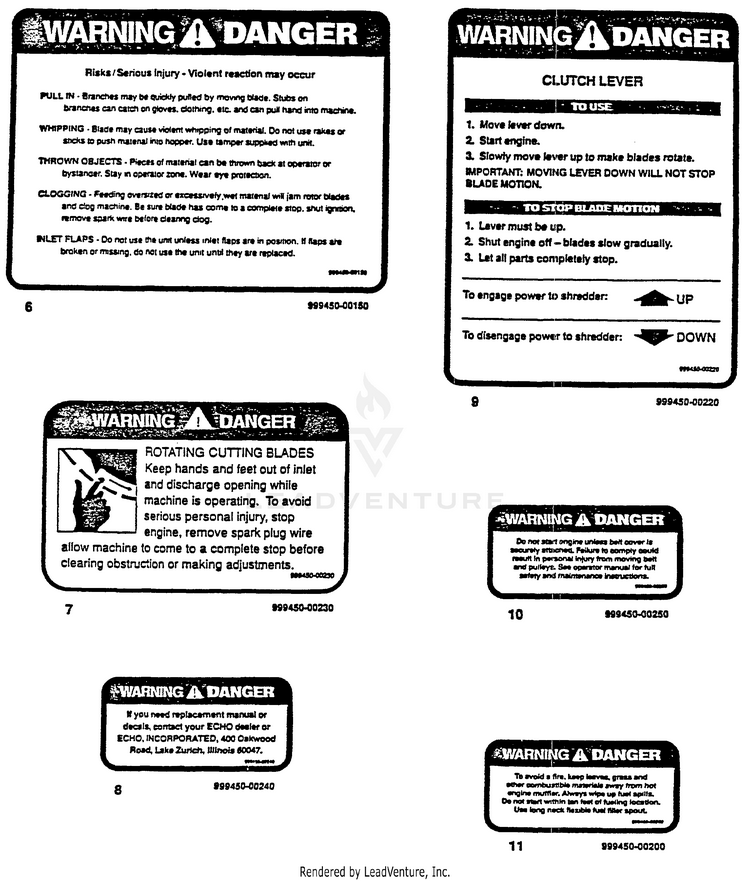

Decal Part 2

...
...
6
LABEL ECH-99945000150
...
7
LABEL ECH-99945000230
...
8
LABEL ECH-99945000240
...
9
LABEL ECH-99945000220
...
10
LABEL ECH-99945000250
...
11
LABEL ECH-99945000200

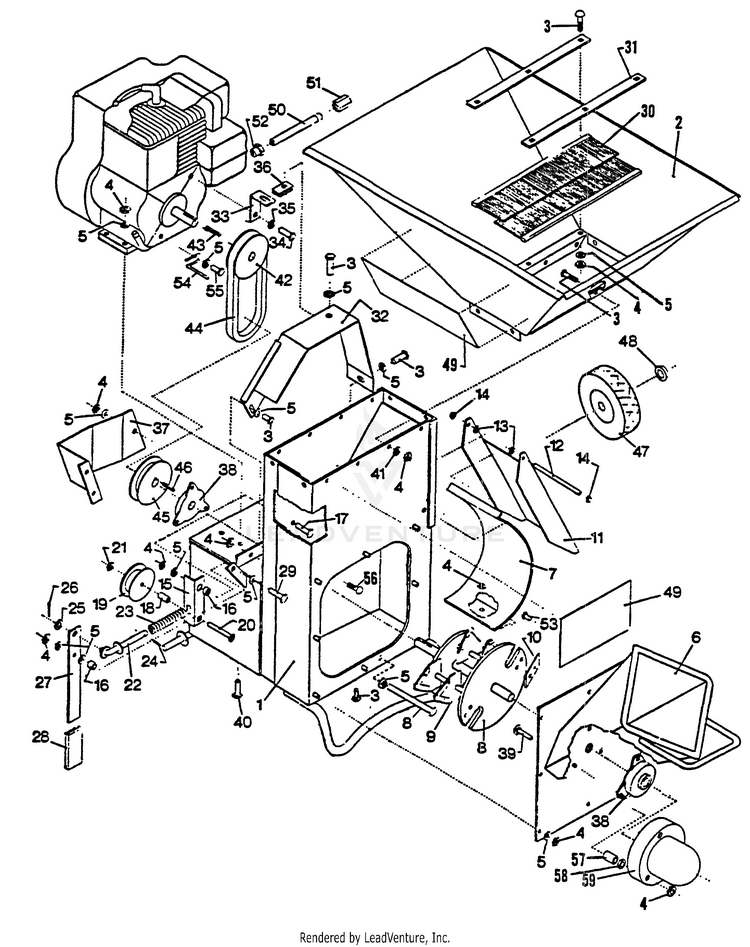

Shredder Frame, Hopper, Rotor, Drv Sys, Discharge, Wheels

...
...
------------------
SCREEN See "Accessories" parts list. ECH---
...
7
INSTRUCTIONS, SHREDDER KIT ECH-99922202249
...
7
INSTRUCTIONS, SHREDDER KIT ECH-99922202249
...
16
SPACER, IDLER PIVOT ECH-70069126
...
16
ANGLE, HONDA GUARD SUPPORT - 8 HP ECH-70007256
...
16
BEARING, 1" FLUSH MOUNT CAST W/ COLLAR ECH-YH453000120
...
49
LABEL - MODEL SH-3000 ECH-99945000300
...
49
LABEL - MODEL SH-5000 ECH-99945000310
...
49
LABEL - MODEL SH-8000E ECH-99945000320
...
49
LABEL - MODEL SH-8000 E ECH-99945000330
...
49
LABEL - MODEL SH-8000 I.C. ECH-99945000340
...
49
LABEL - MODEL SH-8000 R ECH-99945000350

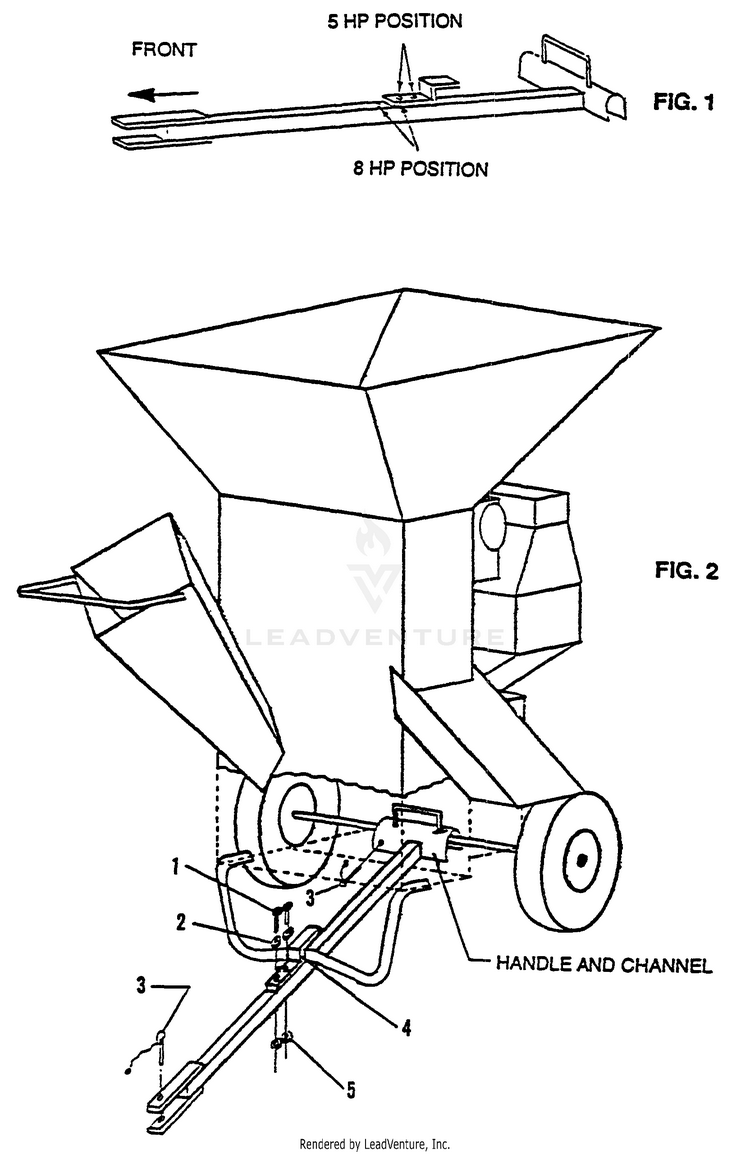

Tow Hitch Attachment

...

No Parts Available for this Schematic

...
...
...
...
...
