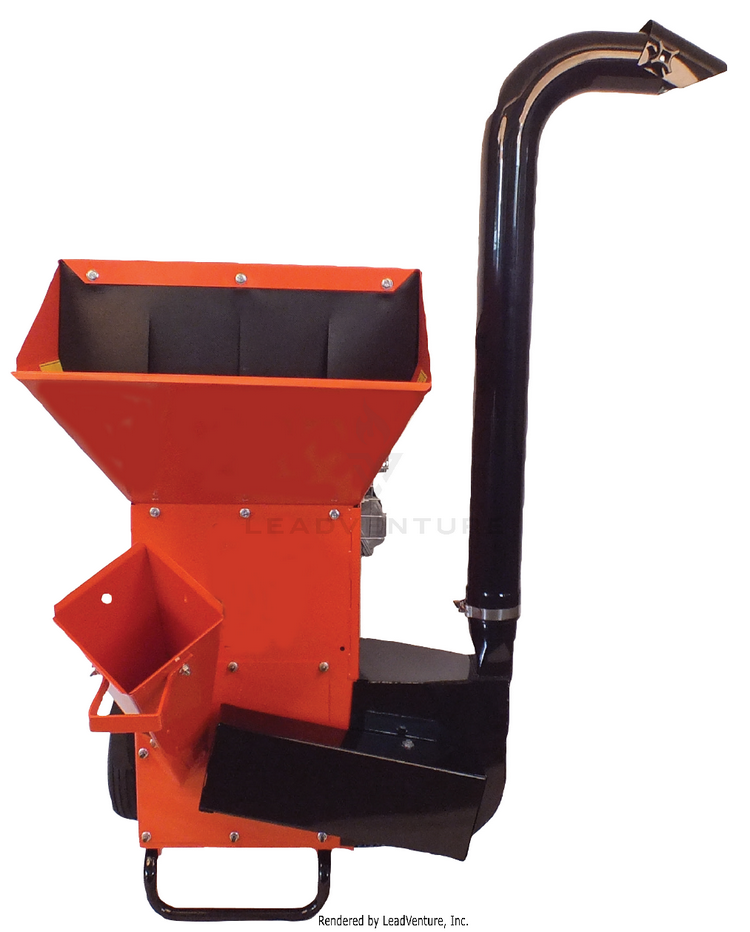

Echo SC-4213 -- 220SCB000001 to 220SCB999999 Shredder

Model: SC-4213 -- 220SCB000001 to 220SCB999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

BLOWER, ONE SPEED BLOWER

...
...
1
BLOWER,ONE SPEED BLOWER Includes Items 2-21 ECH-99944300012
...
2
BOLT, 5/16 × 3/4 GR5 CRG NC ZP ECH-YH434000050
...
3
SHAFT, BLOWER IMPELLER 8HP ECH-YH484000040
...
4
WELDMENT, BLOWER IMPELLER ECH-YH479002220
...
5
WELDMENT, BLOWER ATTACHMENT ECH-YH479002210
...
6
FLANGETTE, 52MM ECH-YH453000160
...
7
DECAL, SHIELD DANGER ECH-YH653000820
...
8
NUT 5/16"-18 TINNERMAN U-TYPE ECH-YH449000020
...
9
BOLT, 5/16 × 2-1/4 FLANGE NC ECH-YH436000080
...
10
DECAL, SHIELD DANGER ISO ECH-YH653000170
...
11
SPOUT, BLOWER TUBE ECH-YH467000660
...
12
TUBE, BLOWER ECH-YH467000650
...
13
CLAMP, T-BOLT 4-1/4""IDá ZP ECH-YH452000760
...
14
PULLEY, 3""OD, A GROOVE ECH-YH472000130
...
15
BELT ECH-YH454000050
...
16
KEY, 1/4 SQ × 1-1/2 LG PLAIN ECH-YH469000050
...
17
KNOB, 5/16-18 ECH-YH452000770
...
18
WASHER, 5/16 FLAT ECH-YH451000440
...
19
BOLT, 5/16 × 3/4 FLANGE NC ECH-YH436000010
...
20
NUT, 5/16-18 NYLOCK FLANGE ECH-YH449000040
...
21
WELDMENT, BLOWER BELT GUARD ECH-YH479002230
...
...
...
...
...
