Echo SC-4213 -- 220SCB000001 to 220SCB999999 Shredder

Model: SC-4213 -- 220SCB000001 to 220SCB999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?

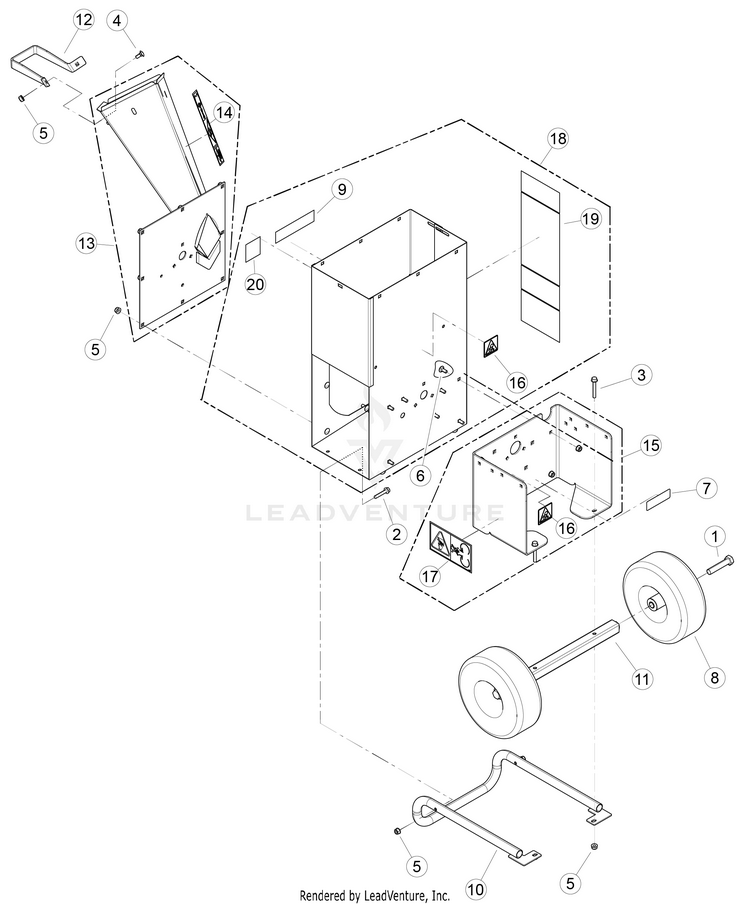

product name

Body

...
...
1
BOLT, 5/8 × 3 HEX HD GR5 ZP ECH-YH434000010
...
2
BOLT, 5/16 × 1-3/4 FLANGE NC ECH-YH436000070
...
3
BOLT, 5/16 × 2-1/4 FLANGE NC ECH-YH436000080
...
4
BOLT, 5/16 × 3/4 GR5 CRG NC ZP ECH-YH434000050
...
5
NUT, 5/16-18 NYLOCK FLANGE ECH-YH449000040
...
6
BOLT, 5/16-18 × 1 GR5 CRG ECH-YH434000030
...
7
DECAL, SERIAL NUMBER ECH---
...
8
ASSEMBLY, 410/350-4 FLAT-FREE WHEEL ECH-YH478000060
...
9
DECAL, MODEL SC-4213 ECH-YH653000490
...
10
WELDMENT, SUPPORT LEG LONG ECH-YH479001440
...
11
WELDMENT, AXLE 3 IN CHIPPER ECH-YH479001570
...
12
HANDLE, CHIPPER CHUTE 3 IN ECH-YH466000410
...
13
ASSEMBLY, 3 IN FRONT PLATE Includes Item 14 ECH-YH479001610
...
14
DECAL, 3" CHIPPER CHUTE ECH-YH653000210
...
15
ASSEMBLY, BASE 3 IN CHIPPER SERVICE Includes Items 16 - 17 ECH-YH479001630
...
16
DECAL, SHIELD DANGER ISO ECH-YH653000170
...
17
DECAL, BLADE DANGER ISO ECH-YH653000180
...
18
ASSEMBLY, 3" C/S WIDE BODY SERVICE Includes Items 6, 9, 16, 19- 20 ECH-YH479001640
...
19
DECAL, 3" CHIPPER BODY SIDE ECH-YH653000220
...
20
DECAL, SPARK ARRESTOR ECH-YH653000290
...
...
...
...
...
