Echo SC-4213 -- 220SCB000001 to 220SCB999999 Shredder

Model: SC-4213 -- 220SCB000001 to 220SCB999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

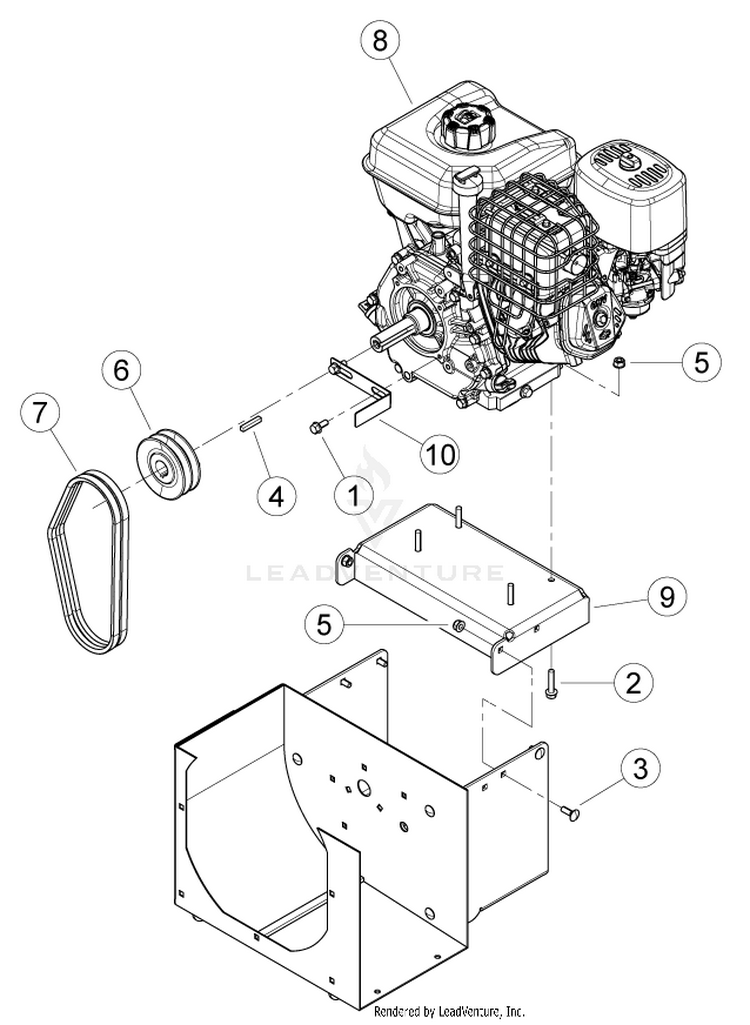

Engine

...
...
1
BOLT, 5/16 × 3/4 SERRATED FLANGE NF ECH-YH436000020
...
2
BOLT, 5/16 × 1-1/2 FLANGE NC ECH-YH436000060
...
3
BOLT, 5/16-18 × 1 GR5 CRG ECH-YH434000030
...
4
KEY, 1/4 SQ × 1-1/2 LG PLAIN ECH-YH469000050
...
5
NUT, 5/16-18 NYLOCK FLANGE ECH-YH449000040
...
6
PULLEY, 4 X1 2A GROOVE ECH-YH472000060
...
7
BELTS, HAH29.1 EL MATCHED SET ECH-YH454000010
...
8
ENGINE, 420cc B&S HORIZONTAL ECH---
...
9
PLATE, ENGINE MOUNTING ECH-YH479000890
...
10
GUIDE, BELT ECH-YH466000320
...
...
...
...
...
