Echo SC-4213 -- 220SCB000001 to 220SCB999999 Shredder

Model: SC-4213 -- 220SCB000001 to 220SCB999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

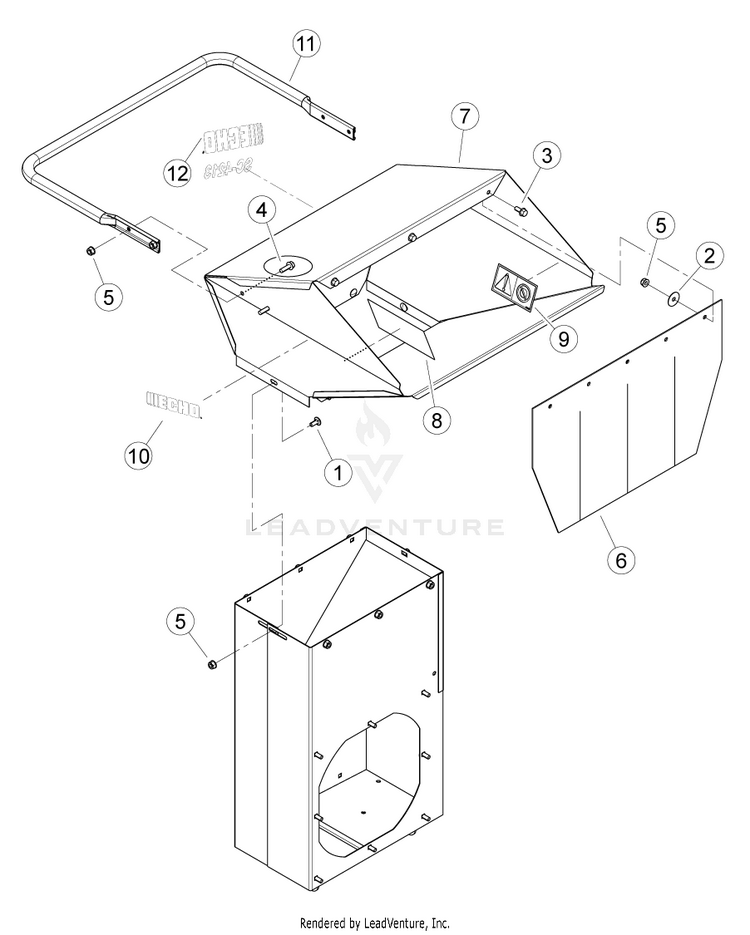

Hopper

...
...
1
BOLT, 5/16-18 × 3/4 SN GR5 CRG ECH-YH434000110
...
2
WASHER, 5/16" FENDER ZP ECH-YH451000070
...
3
BOLT, 5/16 × 3/4 FLANGE NC ECH-YH436000010
...
4
BOLT, 5/16 × 1 FLANGE NC ECH-YH436000050
...
5
NUT, 5/16-18 NYLOCK FLANGE ECH-YH449000040
...
6
BELTING, RENTAL HOPPER ECH-YH479000840
...
7
ASSEMBLY, WIDE BODY RENTAL HOPPER W/ DECALS Includes Items 8, 9, 10 & 12 ECH-YH479002200
...
8
DECAL, BLADE DANGER ISO ECH-YH653000180
...
9
DECAL, SHREDDER SIZE ISO ECH-YH653000190
...
10
DECAL, ECHO ECH-YH653000670
...
11
HANDLE, RENTAL HOPPER Includes Item 12 ECH-YH479000970
...
12
DECAL, MODEL SC-4213 ECH-YH653000490
...
...
...
...
...
