Echo SC-4213 -- 220SCB000001 to 220SCB999999 Shredder

Model: SC-4213 -- 220SCB000001 to 220SCB999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

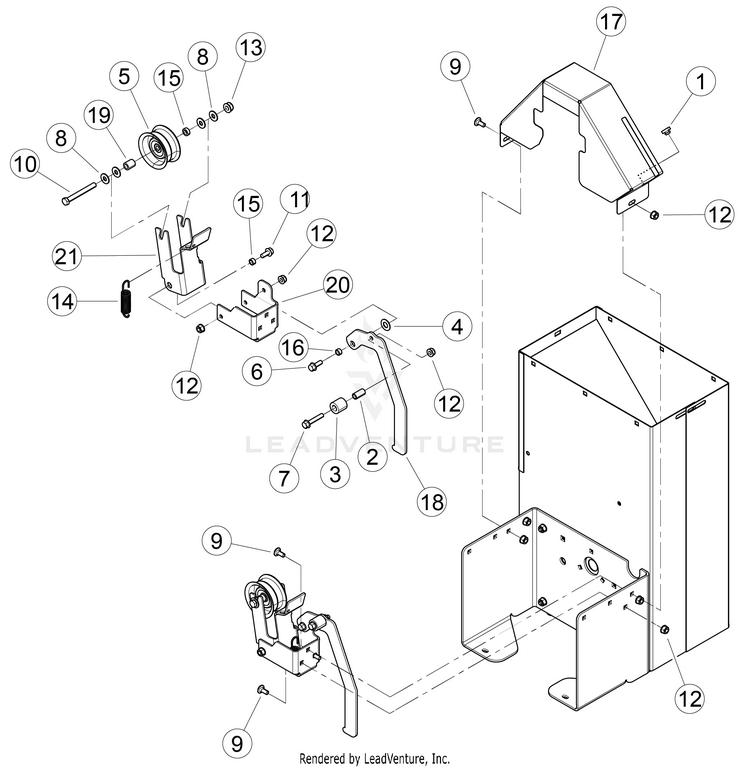

Idler

...
...
1
BUMPER, RUBBER ECH-YH468000490
...
2
SPACER, 0.5 × 1.00 ECH-YH475000190
...
3
ROLLER, 0.5 × 1.00 × 1.00 NYLON ECH-YH453000130
...
4
WASHER, 1/2 INCH NYLON ECH-YH451000480
...
5
IDLER, 2.75 × 1.25 ECH-YH472000080
...
6
BOLT, 5/16 × 7/8 FLANGE NC ECH-YH436000030
...
7
BOLT, 5/16 × 1-3/4 FLANGE NC ECH-YH436000070
...
8
WASHER, 5/16 FLAT ECH-YH451000440
...
9
BOLT, 5/16 × 3/4 GR5 CRG NC ZP ECH-YH434000050
...
10
BOLT, 3/8 × 3-1/4 HEX HD GR5 ZP ECH-YH434000090
...
11
BOLT, 5/16 × 3/4 FLANGE NC ECH-YH436000010
...
12
NUT, 5/16-18 NYLOCK FLANGE ECH-YH449000040
...
13
NUT, 3/8-16 NYLOCK FLANGE ECH-YH449000050
...
14
SPRING, 3/4" OD EXTENSION ECH-YH476000170
...
15
SPACER, IDLER PIVOT ECH-YH475000080
...
16
SPACER, .50 × .25 ECH-YH475000180
...
17
SHIELD, UPPER ECH-YH479001020
...
18
HANDLE, ENGAGEMENT ECH-YH470000860
...
19
SPACER, 5/8 OD × 11 GA × 0.88 ECH-YH475000250
...
20
MOUNT, IDLER BRACKET ECH-YH479001600
...
21
BRACKET, IDLER 3 IN CHIPPER ECH-YH466000400
...
...
...
...
...
