Echo SC-4213 -- 220SCB000001 to 220SCB999999 Shredder

Model: SC-4213 -- 220SCB000001 to 220SCB999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

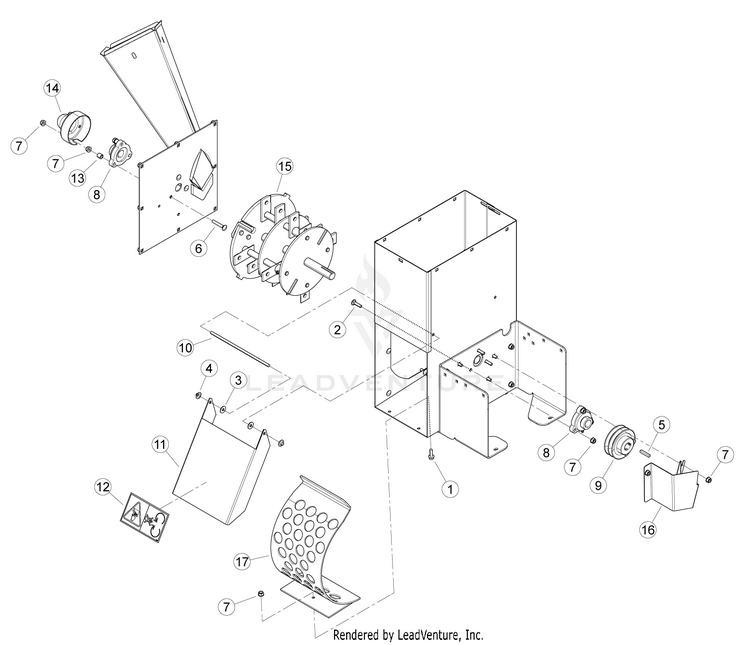

Rotor & Bearings

...
...
1
BOLT, 5/16 × 1 FLANGE NC ECH-YH436000050
...
2
BOLT, 5/16 × 1-1/4 GR5 CRG ECH-YH434000060
...
3
WASHER, 5/16" ID 7/8" OD NYLON FLAT ECH-YH451000470
...
4
PUSHNUT, 5/16" ZP ECH-YH452000660
...
5
KEY, 1/4 SQ × 1-1/2 LG PLAIN ECH-YH469000050
...
6
BOLT, 5/16 × 2" GR5 CRG NC ZP ECH-YH434000080
...
7
NUT, 5/16-18 NYLOCK FLANGE ECH-YH449000040
...
8
BEARING, 1" FLUSH MOUNT CAST W/ COLLAR ECH-YH453000120
...
9
PULLEY, CAST 4" OD 1" BORE B GRV ECH-YH472000040
...
10
SHAFT, DOOR PIVOT ECH-YH466000440
...
11
DOOR, DISCHARGE 8 HP W/ DECAL Includes Item 12 ECH-YH479000810
...
12
DECAL, BLADE DANGER ISO ECH-YH653000180
...
13
SPACER, .54 OD × .50" LG ECH-YH475000090
...
14
CAP, ROTOR SHAFT END CAP RENTAL ECH-YH468000110
...
15
ASSEMBLY, WIDE ROTOR W/ RECT KNIVES ECH-YH457000080
...
16
SHIELD, LOWER ECH-YH479001030
...
17
WELDMENT, WIDE COARSE TAPERED ECH-99944300002
...
...
...
...
...
