Echo SC-2013 -- 200SCB000001 - 200SCB999999 Chipper/Shredder

Model: SC-2013 -- 200SCB000001 - 200SCB999999

Save
 Part Not Listed?Part Not Listed?
product name

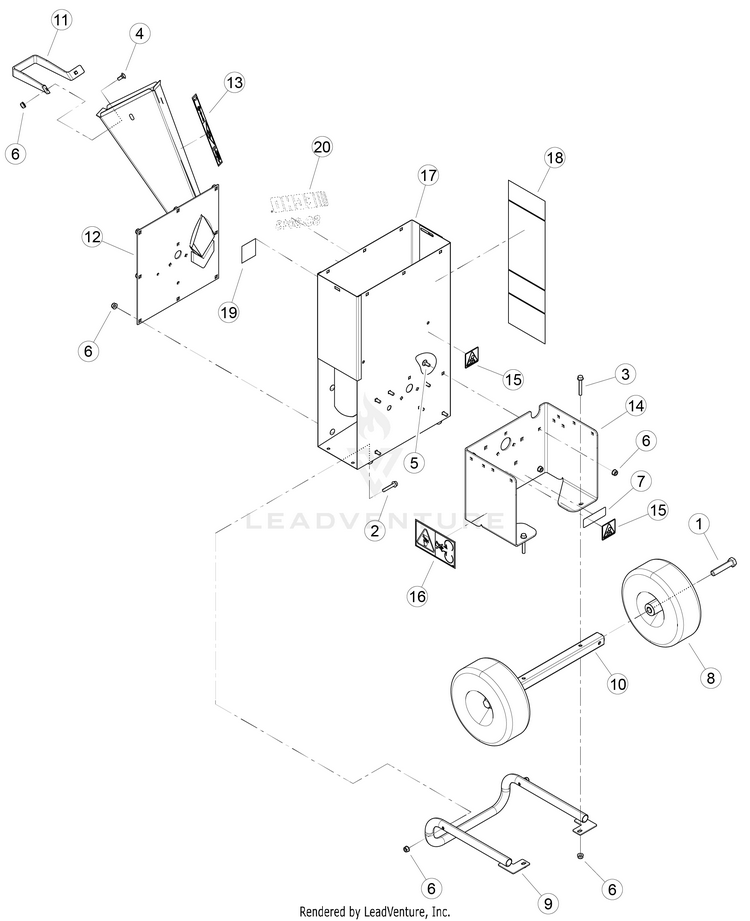

Body

...
...
1
BOLT, 5/8 × 3 HEX HD GR5 ZP ECH-YH434000010
...
2
BOLT, 5/16 × 1-3/4 FLANGE NC ECH-YH436000070
...
3
BOLT, 5/16 × 2-1/4 FLANGE NC ECH-YH436000080
...
4
BOLT, 5/16 × 3/4 GR5 CRG NC ZP ECH-YH434000050
...
5
NUT, 1/4-20 NYLOCK-FLANGE ECH-YH449000030
...
6
NUT, 5/16-18 NYLOCK FLANGE ECH-YH449000040
...
7
DECAL, SERIAL NUMBER ECH---
...
8
ASSEMBLY, 410/350-4 FLAT-FREE WHEEL ECH-YH478000060
...
9
WELDMENT, SUPPORT LEG SHORT ECH-YH479001560
...
10
WELDMENT, AXLE 3 IN CHIPPER ECH-YH479001570
...
11
HANDLE, CHIPPER CHUTE 3 IN ECH-YH466000410
...
12
ASSEMBLY, 3 IN FRONT PLATE Includes item 13 ECH-YH479001610
...
13
DECAL, 3" CHIPPER CHUTE ECH-YH653000210
...
14
ASSEMBLY, BASE 3 IN CHIPPER SERVICE Includes items 15-16 ECH-YH479001630
...
15
DECAL, SHIELD DANGER ISO ECH-YH653000170
...
16
DECAL, BLADE DANGER ISO ECH-YH653000180
...
17
ASSEMBLY, 3 IN DOM BODY COMPONENTS Includes items 18-20 ECH-YH479001850
...
18
DECAL, 3" CHIPPER BODY SIDE ECH-YH653000220
...
19
DECAL, SPARK ARRESTOR ECH-YH653000290
...
20
DECAL, MODEL ECHO SC-2013 ECH-YH653000440

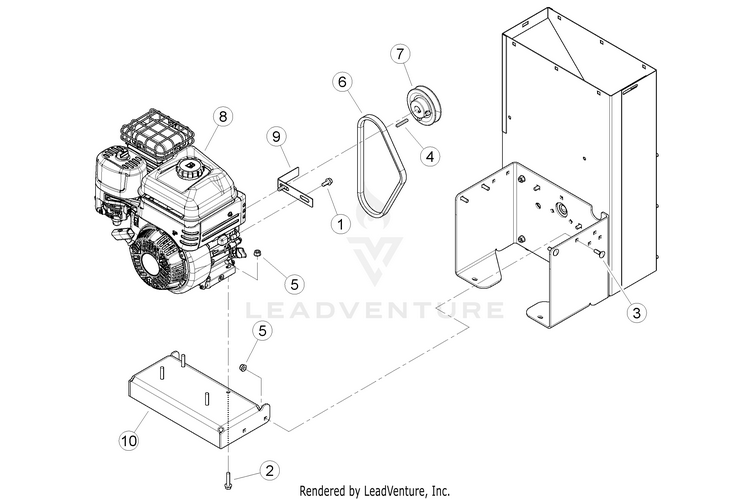

Engine

...
...
1
BOLT, 5/16 × 3/4 SERRATED FLANGE NF ECH-YH436000020
...
2
BOLT, 5/16 × 1-1/2 FLANGE NC ECH-YH436000060
...
3
BOLT, 5/16-18 × 1 GR5 CRG ECH-YH434000030
...
4
KEY, SQUARE 3/16" × 1-1/2" LG PLN ECH-YH469000060
...
5
NUT, 5/16-18 NYLOCK FLANGE ECH-YH449000040
...
6
BELT, 29" C/S ECH-YH454000000
...
7
PULLEY, CAST 4" OD 3/4" BORE B GR ECH-YH472000050
...
8
ENGINE, 208cc 900 SERIES B&S ECH---
...
9
GUIDE, BELT ECH-YH466000320
...
10
PLATE, ENGINE MOUNTING ECH-YH479001430

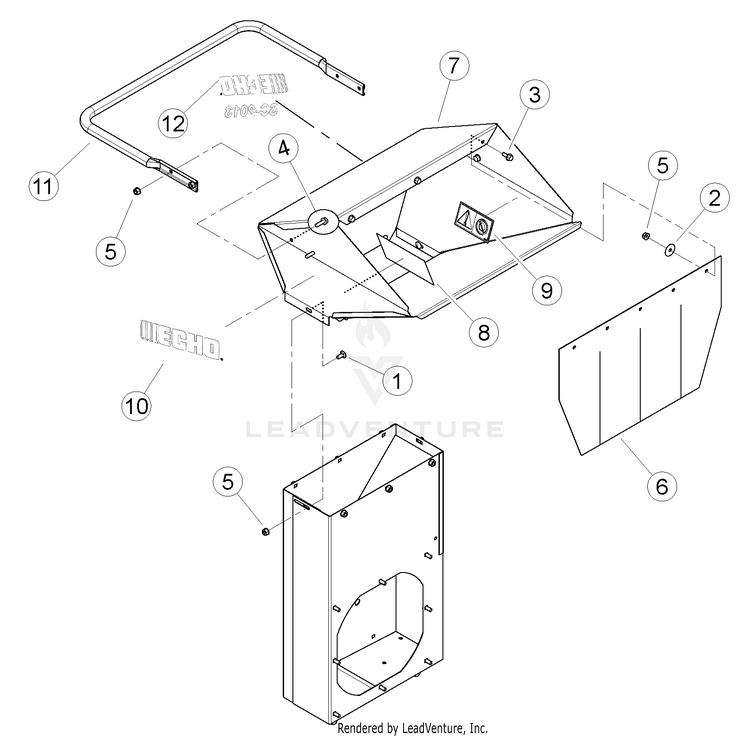

Hopper

...
...
1
BOLT, 5/16-18 × 3/4 SN GR5 CRG ECH-YH434000110
...
2
WASHER, 5/16" FENDER ZP ECH-YH451000070
...
3
BOLT, 5/16 × 3/4 FLANGE NC ECH-YH436000010
...
4
BOLT, 5/16 × 1 FLANGE NC ECH-YH436000050
...
5
NUT, 5/16-18 NYLOCK FLANGE ECH-YH449000040
...
6
BELTING, RENTAL HOPPER ECH-YH479000840
...
7
ASSEMBLY, NARROW RENTAL HOPPER W/ DECALS Includes Items 8, 9, 10 & 12 ECH-YH479000950
...
8
DECAL, BLADE DANGER ISO ECH-YH653000180
...
9
DECAL, SHREDDER SIZE ISO ECH-YH653000190
...
10
DECAL, ECHO ECH-YH653000670
...
11
HANDLE, RENTAL HOPPER ECH-YH479000970
...
12
DECAL, MODEL ECHO SC-2013 ECH-YH653000440

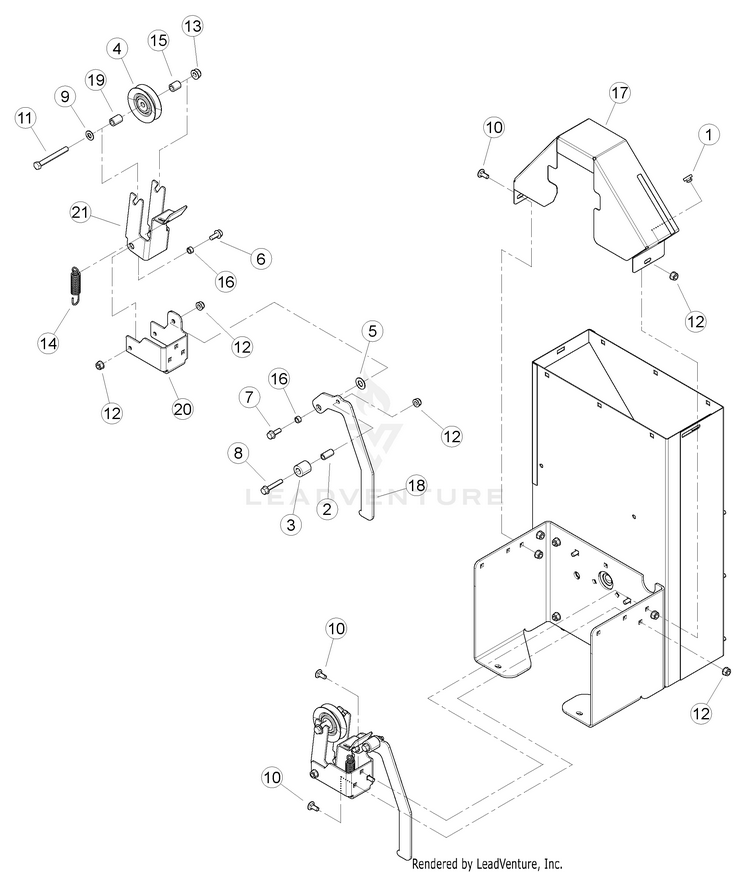

Idler

...
...
1
BUMPER, RUBBER ECH-YH468000490
...
2
SPACER, 0.5 × 1.00 ECH-YH475000190
...
3
ROLLER, 0.5 × 1.00 × 1.00 NYLON ECH-YH453000130
...
4
IDLER, INSIDE ECH-YH472000070
...
5
WASHER, 1/2 INCH NYLON ECH-YH451000480
...
6
BOLT, 5/16 × 3/4 FLANGE NC ECH-YH436000010
...
7
BOLT, 5/16 × 7/8 FLANGE NC ECH-YH436000030
...
8
BOLT, 5/16 × 1-3/4 FLANGE NC ECH-YH436000070
...
9
WASHER, 3/8 SAE FLAT ZP ECH-YH451000460
...
10
BOLT, 5/16 × 3/4 GR5 CRG NC ZP ECH-YH434000050
...
11
BOLT, 3/8 × 3-1/4 HEX HD GR5 ZP ECH-YH434000090
...
12
NUT, 5/16-18 NYLOCK FLANGE ECH-YH449000040
...
13
NUT, 3/8-16 NYLOCK FLANGE ECH-YH449000050
...
14
SPRING, 3/4" OD EXTENSION ECH-YH476000170
...
15
SPACER, 3/4" LONG IDLER TUBE ECH-YH475000070
...
16
SPACER, .50 × .25 ECH-YH475000180
...
17
SHIELD, UPPER ECH-YH479001020
...
18
HANDLE, ENGAGEMENT ECH-YH470000860
...
19
SPACER, 5/8 OD × 11 GA × 0.88 ECH-YH475000250
...
20
MOUNT, IDLER BRACKET ECH-YH479001600
...
21
BRACKET, IDLER 3 IN CHIPPER ECH-YH466000400

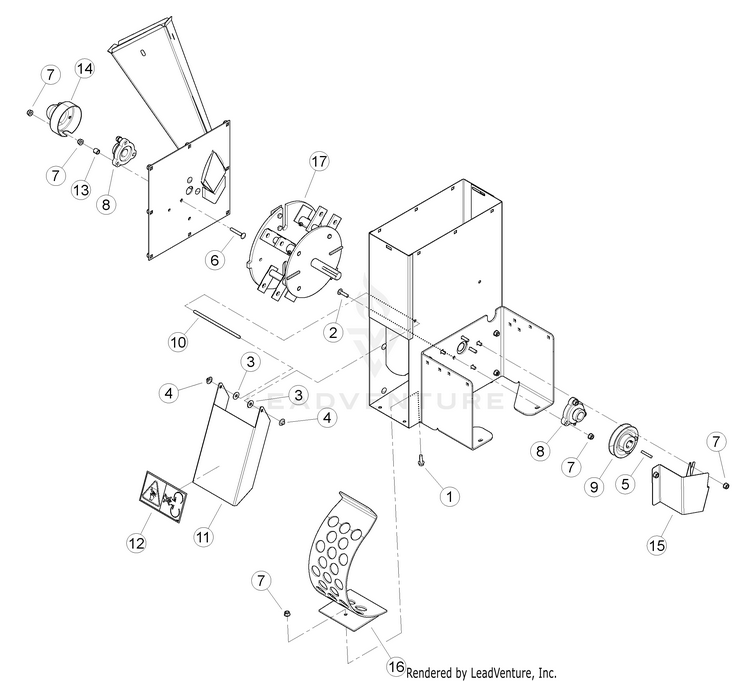

Rotor & Bearings

...
...
1
BOLT, 5/16 × 1 FLANGE NC ECH-YH436000050
...
2
BOLT, 5/16 × 1-1/4 GR5 CRG ECH-YH434000060
...
3
WASHER, 5/16" ID 7/8" OD NYLON FLAT ECH-YH451000470
...
4
PUSHNUT, 5/16" ZP ECH-YH452000660
...
5
KEY, 1/4 SQ × 1-1/2 LG PLAIN ECH-YH469000050
...
6
BOLT, 5/16 × 2" GR5 CRG NC ZP ECH-YH434000080
...
7
NUT, 5/16-18 NYLOCK FLANGE ECH-YH449000040
...
8
BEARING, 1" FLUSH MOUNT CAST W/ COLLAR ECH-YH453000120
...
9
PULLEY, CAST 4" OD 1" BORE B GRV ECH-YH472000040
...
10
SHAFT, DOOR PIVOT ECH-YH466000140
...
11
DOOR, 3 5 HP DISCHARGE W/ DECAL Includes Item 12 ECH-YH479000800
...
12
DECAL, BLADE DANGER ISO ECH-YH653000180
...
13
SPACER, .54 OD × .50" LG ECH-YH475000090
...
14
CAP, ROTOR SHAFT END CAP RENTAL ECH-YH468000110
...
15
SHIELD, LOWER ECH-YH479001030
...
16
WELDMENT, NARROW COARSE TAPERED ECH-99944300006
...
17
ASSEMBLY, 3” NARROW ROTOR KNIVES ECH-YH457000100
...
...
...
...
...
Processing
