Echo QV-8000 Type 1E S/N: C90303001001 - C90303999999 Quick Vent Saw

Model: QV-8000 1E S/N: C90303001001 - C90303999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

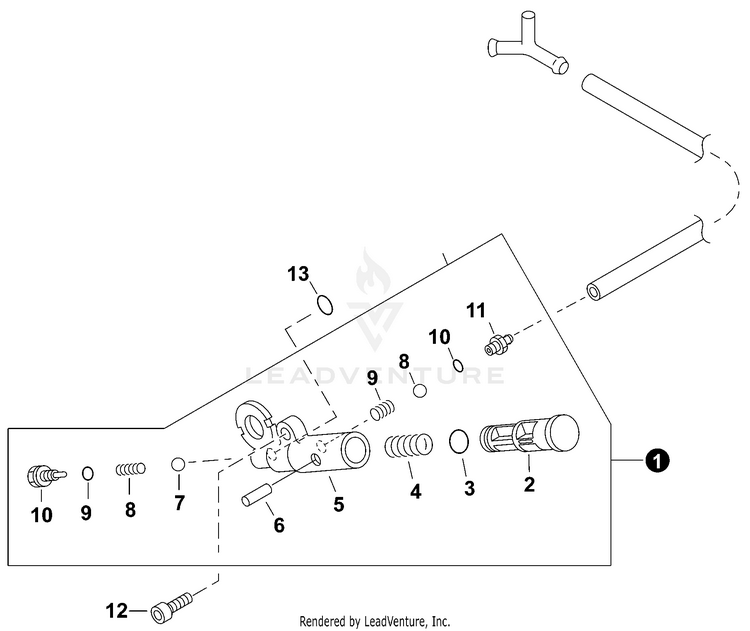

Oil Pump

...
...
1
OIL PUMP ASSY - ORANGE Includes Items 2-11 ECH-43710038832
...
1
OIL PUMP ASSY - BLACK Includes Items 2-11 ECH-43710019832
...
2
PISTON, OIL PUMP - ORANGE ECH-43711238731
...
2
PISTON, OIL PUMP - BLACK ECH-43711219831
...
3
O-RING 7 MM ECH-90072000007
...
4
SPRING ECH-43711119830
...
5
BODY, OIL PUMP ECH-43711019831
...
6
PIN, SPRING 2x16 ECH-90034520016
...
7
VALVE, BALL ECH-43701200330
...
8
SPRING, COMPRESSION ECH-V450000290
...
9
O-RING ECH-43712203430
...
10
ADAPTOR, OIL PUMP ECH-43712110130
...
11
CONNECTOR, PIPE ECH-43711819830
...
12
BOLT 5x20 ECH-90016205020
...
13
O-RING 3 ECH-90072000003
...
...
...
...
...
