Echo QV-8000 Type 1E S/N: C90303001001 - C90303999999 Quick Vent Saw

Model: QV-8000 1E S/N: C90303001001 - C90303999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

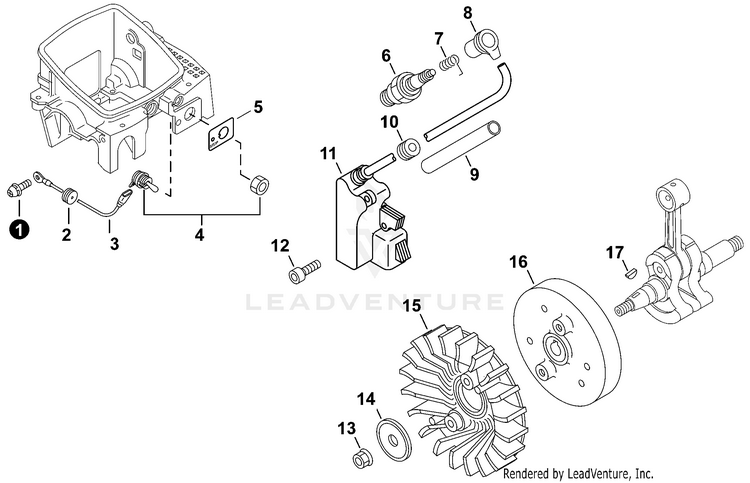

Ignition

...
...
1
SCREW 4x8 ECH-90024204008
...
2
GROMMET ECH-15611404920
...
3
LEAD ECH-16202130830
...
4
SWITCH, ON-OFF ECH-16340030830
...
5
LABEL - STOP ECH-89015719830
...
6
SPARK PLUG - BPMR7A ECH-15901010230
...
7
TERMINAL, SPARK PLUG ECH-15901103432
...
8
CAP, SPARK PLUG ECH-15901203433
...
9
TUBE 7x8.6x45 ECH-15061130830
...
10
GROMMET ECH-15211205730
...
11
COIL, IGNITION ECH-15660130832
...
12
BOLT 4x20 ECH-90016204020
...
13
NUT, FLANGE M8x1.25 ECH-V265000200
...
14
WASHER 8.2x31x0.8 ECH-10014319830
...
15
FAN, COOLING ECH-10152130832
...
16
FLYWHEEL ECH-15680032631
...
17
KEY, WOODRUFF ECH-10014230830
...
...
...
...
...
