Echo QV-8000 Type 1E S/N: C90303001001 - C90303999999 Quick Vent Saw

Model: QV-8000 1E S/N: C90303001001 - C90303999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

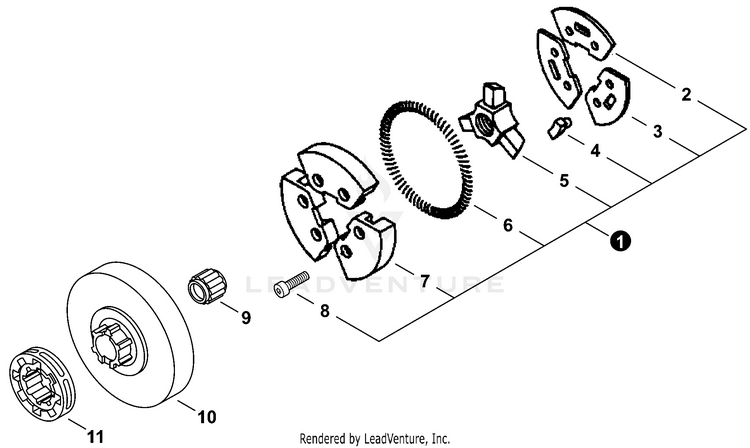

Clutch

...
...
1
CLUTCH ASSY Includes Items 2-8 ECH-17500030832
...
2
PLATE, CLUTCH ECH-17501930830
...
3
PLATE, CLUTCH ECH-17502930830
...
4
SPACER ECH-17505930830
...
5
HUB, CLUTCH ECH-17501630830
...
6
SPRING, CLUTCH ECH-17501830830
...
7
CLUTCH SHOE SET ECH-17500230831
...
8
BOLT 4x8 ECH-90010504008
...
9
BEARING, NEEDLE ECH-17501230831
...
10
DRUM, CLUTCH ECH-17510530831
...
11
SPROCKET, RIM 3/8"x7T ECH-68210
...
...
...
...
...
