Echo QV-680 S/N: C03403001001 - C03403999999 Quick Vent Saw

Model: QV-680 S/N: C03403001001 - C03403999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

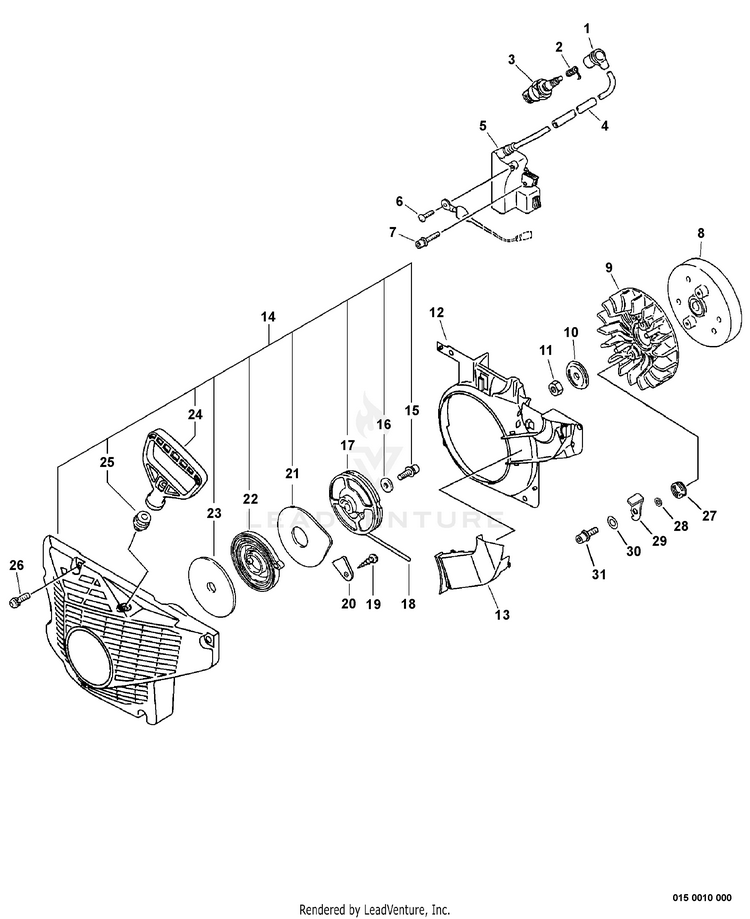

Starter, Ignition, Flywheel

...
...
1
CAP, SPARK PLUG ECH-A427000013
...
2
TERMINAL, SPARK PLUG ECH-A426000010
...
3
SPARK PLUG - BPMR7A ECH-15901010230
...
3
SPARK PLUG - BPMR7A ECH-15901010230
...
4
PIPE ECH-15661119830
...
5
COIL, IGNITION ECH-15660132632
...
6
SCREW 4x8 ECH-90024204008
...
7
BOLT 4x20 ECH-90016204020
...
8
FLYWHEEL ECH-15680032631
...
9
FAN ECH-A171000060
...
10
WASHER 8.2x31x0.8 ECH-10014319830
...
11
NUT M8 ECH-90050000008
...
12
COVER, FAN ECH-A172000850
...
13
DUCT, AIR ECH-A161000020
...
14
STARTER ASSY Includes ITEMS 15-25 ECH-P021017380
...
15
BOLT 5x14 ECH-90016205014
...
16
WASHER 5.5x12x0.8 ECH-90060300005
...
17
REEL, ROPE ECH-17721532330
...
18
ROPE, STARTER 4.0x950 RePower BULK OPTION: 99944450000 ECH-17722607060
...
19
SCREW 4x8 ECH-90025304008
...
20
PLATE, EYE ECH-43314415130
...
21
PLATE, STARTER ECH-17722107060
...
22
SPRING, RECOIL ECH-17722002834
...
23
PLATE, STARTER ECH-17722102830
...
24
GRIP, STARTER ECH-17722832630
...
25
GUIDE, ROPE ECH-17722707060
...
26
BOLT 5x20 ECH-90016205020
...
27
SPRING, RETURN ECH-17723419832
...
28
COLLAR 5 ECH-V353000192
...
29
PAWL, STARTER ECH-17721832632
...
30
WASHER 5.5x12x0.8 ECH-90060300005
...
31
BOLT 5x18 ECH-V203000150
...
...
...
...
...
