Echo QV-680 S/N: C03403001001 - C03403999999 Quick Vent Saw

Model: QV-680 S/N: C03403001001 - C03403999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

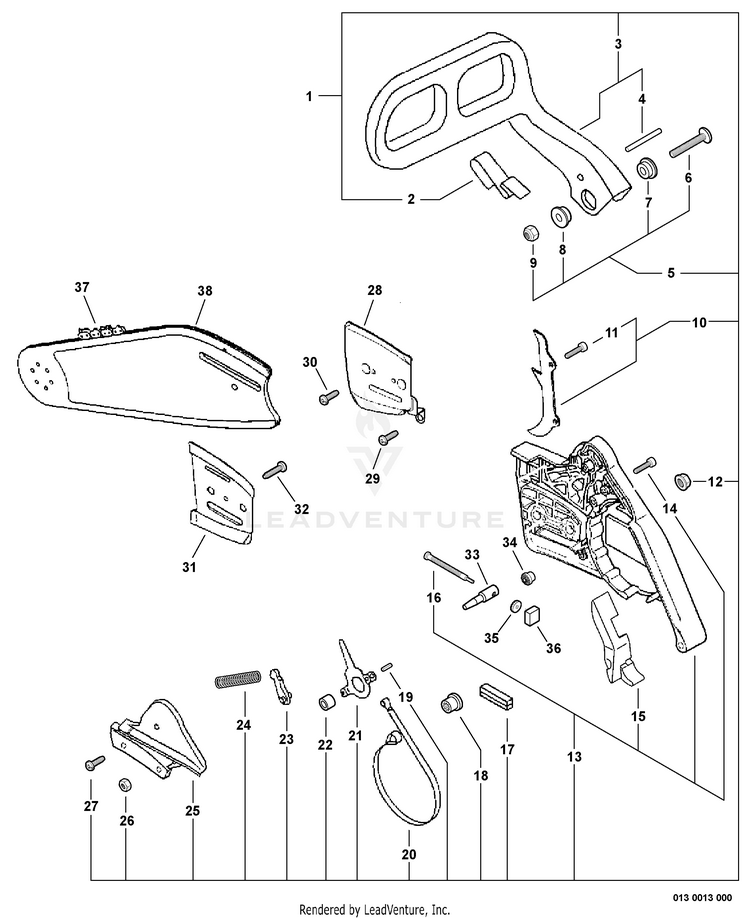

Chain Brake Asssembly

...
...
1
CHAIN BRAKE ASSY, CS-670 INCLUDES ITEMS 2-27 ECH-P021044520
...
2
SPRING, FLAT ECH-43311438131
...
3
LEVER, BRAKE ECH-43310538131
...
4
PIN 3.5x26 ECH-90033035260
...
5
SCREW KIT Includes ITEMS 6-9 ECH-43311337539
...
6
SCREW 5x35 ECH-90020905035
...
7
COLLAR 5 ECH-43316739730
...
8
COLLAR 5.3x10x13xL5 ECH-43316739130
...
9
NUT, LOCK M5 ECH-90056200005
...
10
SPIKE KIT, BUMPER Includes ITEM 11 ECH-P021002880
...
11
BOLT 5x12 ECH-90010505012
...
12
NUT, FLANGE M8x1.25 ECH-V265000200
...
13
GUARD KIT, SPROCKET Includes ITEMS 14-16 ECH-P021002286
...
14
SCREW 3x18 ECH-90022003018
...
15
CUSHION ECH-C302000000
...
16
SCREW, CHAIN TENSION ECH-V203000110
...
17
SEAL, BRAKE ECH-43331232630
...
18
ADJUSTER, BRAKE ECH-43314235430
...
19
PIN, SPRING 4x8.8 ECH-90033040088
...
20
BAND, BRAKE ECH-43312338131
...
21
LEVER, BRAKE ECH-43320835431
...
22
SPACER 8x12x9 ECH-43311635430
...
23
STOPPER, BRAKE ECH-43320935430
...
24
SPRING, BRAKE ECH-43312238130
...
25
COVER, BRAKE ECH-43331038130
...
26
NUT 3 MM ECH-90050000003
...
27
SCREW 4x12 ECH-90025204012
...
28
PLATE, GUIDE - OUTER ECH-C305000050
...
29
SCREW 4x10 ECH-90025304010
...
30
SCREW 3x6 ECH-90024103006
...
31
PLATE, GUIDE - INNER ECH-43301332631
...
32
SCREW 4x8 ECH-90024104008
...
33
TENSIONER, CHAIN ECH-C309000030
...
34
GEAR, BEVEL ECH-V651000001
...
35
GEAR, BEVEL ECH-V651000011
...
36
COLLAR 8 ECH-V355000800
...
37
CHAIN - CARBICHAIN QUICKVENT ECH-99988800045
...
38
GUIDE BAR - QUICKVENT ECH-99988800141
...
...
...
...
...
