Echo QV-680 S/N: C03403001001 - C03403999999 Quick Vent Saw

Model: QV-680 S/N: C03403001001 - C03403999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

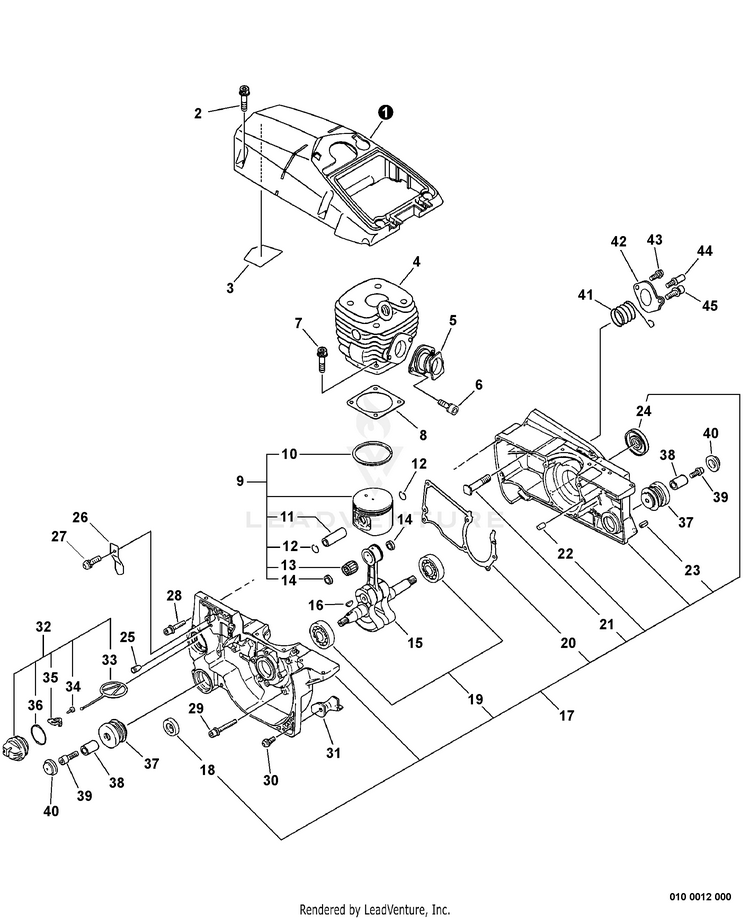

Engine, Cylinder Cover

...
...
1
COVER, ENGINE ECH-A160000461
...
2
BOLT 5x20 ECH-90016205020
...
3
SHIELD, HEAT ECH-V341000010
...
4
CYLINDER ECH-A130002000
...
5
BELLOWS, INTAKE ECH-A202000012
...
6
BOLT 5x14 ECH-90016205014
...
7
BOLT 5x25 ECH-90016205025
...
8
GASKET, CYLINDER ECH-10101032431
...
9
PISTON KIT Includes ITEMS 10-14 ECH-P021015290
...
10
RING, PISTON ECH-A101000150
...
11
PIN, PISTON 12 ECH-V610000000
...
12
RING, SNAP ECH-V580000000
...
13
BEARING, NEEDLE ECH-10001232430
...
14
WASHER, THRUST ECH-10001418430
...
15
CRANKSHAFT ASSY ECH-A011000250
...
16
KEY, WOODRUFF ECH-10014230830
...
17
CRANKCASE KIT Includes ITEMS 18-25 ECH-10020432438
...
18
SEAL, OIL ECH-10021219830
...
19
BEARING, BALL 6202 ECH-90081036202
...
20
GASKET, CRANKCASE ECH-10024232430
...
21
STUD, GUIDE BAR 8 ECH-43301119831
...
22
PIN, LOCATING 5x10 ECH-10021502830
...
23
PIN, SPRING 5x10 ECH-90034550010
...
24
SEAL, OIL ECH-10021232430
...
25
VENT ASSY ECH-43611413930
...
26
PLATE, EYE ECH-V150000570
...
27
SCREW 4x8 ECH-90024204008
...
28
BOLT 5x20 ECH-90016205020
...
29
BOLT M5x35 ECH-90016205035
...
30
SCREW 5x14 ECH-90023805014
...
31
CUSHION ECH-10091732430
...
32
CAP ASSY Includes ITEMS 33-36 ECH-43600135934
...
33
CONNECTOR, CAP L= 60 MM ECH-A365000050
...
34
SCREW, TAPPING 3x8 ECH-90024603008
...
35
RETAINER, CONNECTOR ECH-13105019830
...
36
O-RING ECH-90072502025
...
37
CUSHION ECH-V420000530
...
38
COLLAR 5 ECH-V353000110
...
39
BOLT 5x25 ECH-90010505025
...
40
CAP, CUSHION ECH-10091819830
...
41
SPRING, COMPRESSION ECH-V450000150
...
42
PLATE, EYE ECH-V150000750
...
43
BOLT 4x8 ECH-90016204008
...
44
BOLT 5 ECH-V203000050
...
45
BOLT 5x14 ECH-90016205014
...
...
...
...
...
