Echo QV-6700 Type 1 Quick Vent Saw

Model: QV-6700 Type 1

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

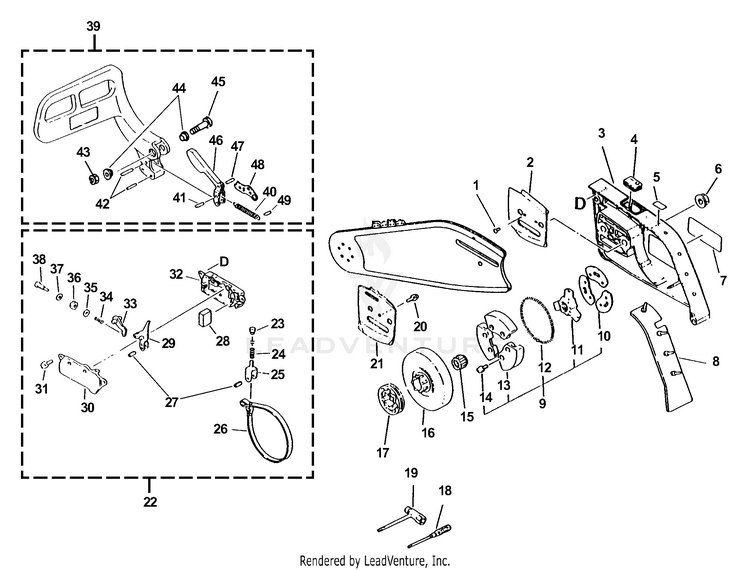

Clutch, Cutting Attachment, Chain Brake S/N: 001001 - 003450

...
...
1
SCREW 3x6 ECH-90024103006
...
2
PLATE, GUIDE - OUTER ECH-43301232631
...
3
GUARD, SPROCKET ECH-P021002296
...
4
SEAL ECH-43331219930
...
5
LABEL - OILER ECH-X524000680
...
6
NUT, FLANGE M8x1.25 ECH-V265000200
...
7
LABEL - ECHO ECH-89011838130
...
8
PAD ECH-43302532430
...
9
CLUTCH ASSY Includes ITEMS 10-14 ECH-17500032432
...
10
PLATE, CLUTCH ECH-17501916130
...
11
HUB, CLUTCH ECH-17501632430
...
12
SPRING, CLUTCH ECH-17501832430
...
13
CLUTCH SHOE SET (3PCS) ECH-17500232431
...
14
BOLT 4x6 ECH-90010504006
...
15
BEARING, NEEDLE ECH-17501232430
...
16
DRUM, CLUTCH ECH-17510532431
...
17
SPROCKET, RIM 3/8"x7T ECH-682100
...
18
SCREWDRIVER ECH-89581203930
...
19
T-WRENCH 13x19x180 ECH-89541006961
...
20
SCREW 4x8 ECH-90024104008
...
21
PLATE, GUIDE - INNER ECH-43301332631
...
22
BRAKE ASSY, CHAIN ECH-43320232530
...
23
NUT ECH-43316919931
...
24
SPRING ECH-43316119930
...
25
ADJUSTER, BRAKE BAND ECH-43314219931
...
26
BAND, BRAKE ECH-43312330830
...
27
PIN, SPRING ECH-90034040010
...
28
SEAL, DUST ECH-43331319930
...
29
LEVER, BRAKE ECH-43320830230
...
30
COVER ECH-43331019931
...
31
BOLT 4x10 ECH-90016204010
...
32
COVER, BRAKE ECH-43330619930
...
33
STOPPER, BRAKE ECH-43320919930
...
34
SPRING ,BRAKE ECH-43312219930
...
35
WASHER ECH-43316219930
...
36
NUT M5 ECH-90050200005
...
37
WASHER ECH-90061700005
...
38
BOLT ECH-43313319930
...
39
LEVER ASSY, BRAKE INCLUDES ITEMS 40-49 ECH-43320332632
...
40
SPRING, RETURN ECH-43311430130
...
41
PIN, SPRING 3x12 ECH-90034530012
...
42
PIN 3x24 ECH-90033030240
...
43
NUT, LOCK M5 ECH-90056000005
...
44
COLLAR 5.3x10x13xL5 ECH-43316739130
...
45
SCREW 5x30 ECH-90020905030
...
46
WEIGHT, BRAKE ECH-43317030130
...
47
PIN, LOCATING 4x8 ECH-90033040080
...
48
STOPPER ECH-43316332430
...
49
PIN, SPRING ECH-90034530016
...
...
...
...
...
