Echo QV-670 S/N: 04001001 - 04999999 Quick Vent Saw

Model: QV-670 S/N: 04001001 - 04999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

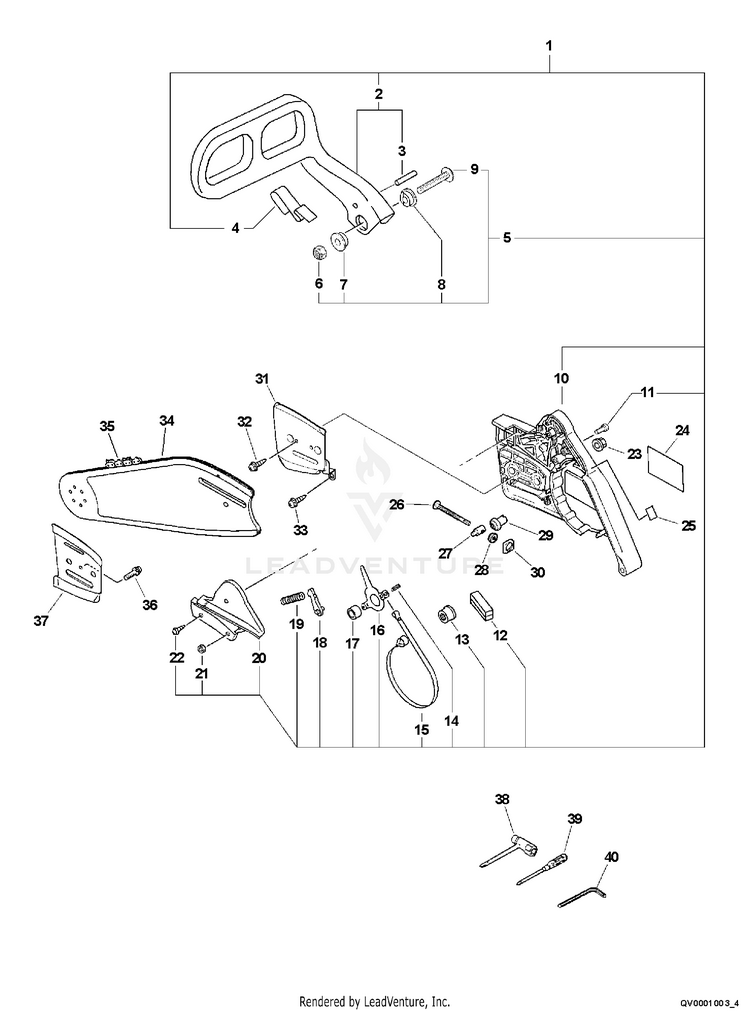

Chain Brake Asssembly, Guide Bar, Chain

...
...
1
BRAKE ASSY, CHAIN INCLUDES ITEMS 2-22 ECH-P021010652
...
2
LEVER, BRAKE ECH-43310533531
...
3
PIN 3.5x26 ECH-90033035260
...
4
SPRING, FLAT ECH-43311438131
...
5
SCREW KIT Includes ITEMS 6-9 ECH-43311337539
...
6
NUT, LOCK M5 ECH-90056000005
...
7
COLLAR 5.3x10x13xL5 ECH-43316739130
...
8
COLLAR 5 ECH-43316739730
...
9
SCREW 5x35 ECH-90020905035
...
10
GUARD, SPROCKET ECH-P021002296
...
11
SCREW 3x18 ECH-90022003018
...
12
SEAL, BRAKE ECH-43331232630
...
13
ADJUSTER, BRAKE ECH-43314235430
...
14
PIN, SPRING 4x8.8 ECH-90033040088
...
15
BAND, BRAKE ECH-43312338131
...
16
LEVER, BRAKE ECH-43320835431
...
17
SPACER 8x12x9 ECH-43311635430
...
18
STOPPER, BRAKE ECH-43320935430
...
19
SPRING, BRAKE ECH-43312238130
...
20
COVER, BRAKE ECH-43331038230
...
21
NUT 3 MM ECH-90050000003
...
22
SCREW 4x12 ECH-90025204012
...
23
NUT, FLANGE M8x1.25 ECH-V265000200
...
24
LABEL - ECHO ECH-89011815130
...
25
LABEL - OILER ECH-X524000680
...
26
BOLT 5 ECH-V203000041
...
27
TENSIONER, CHAIN ECH-C309000030
...
28
GEAR, BEVEL ECH-V651000011
...
29
GEAR, BEVEL ECH-V651000001
...
30
COLLAR 8 ECH-V355000800
...
31
PLATE, GUIDE - OUTER ECH-C305000050
...
32
SCREW 3x6 ECH-90024103006
...
33
SCREW 4x10 ECH-90025304010
...
34
GUIDE BAR - QUICKVENT ECH-99988800141
...
35
CHAIN - CARBICHAIN QUICKVENT ECH-99988800045
...
36
SCREW 4x8 ECH-90024104008
...
37
PLATE, GUIDE - INNER ECH-43301332631
...
38
T-WRENCH 13x19x180 ECH-89541006961
...
39
SCREWDRIVER ECH-89581203930
...
40
WRENCH, ALLEN 4 MM ECH-A605000100
...
...
...
...
...
