Echo QV-670 S/N: 04001001 - 04999999 Quick Vent Saw

Model: QV-670 S/N: 04001001 - 04999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

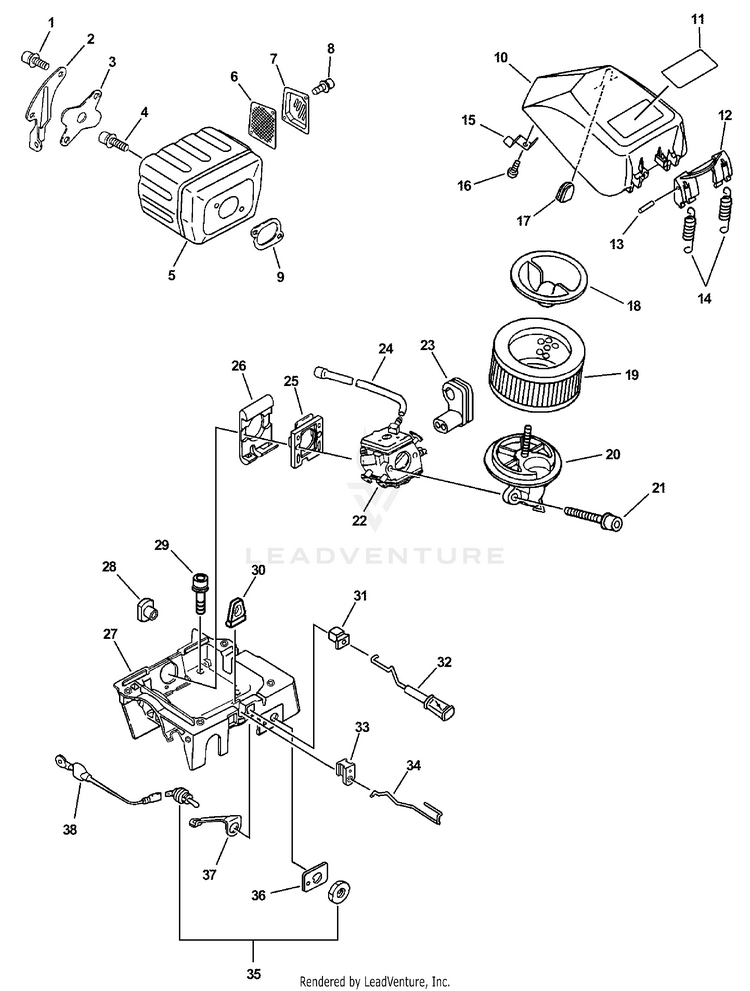

Intake, Exhaust

...
...
1
BOLT 5x14 ECH-90016205014
...
2
BRACKET, MUFFLER ECH-14571132430
...
3
COVER, MUFFLER ECH-14581331730
...
4
BOLT 5x20 ECH-90016205020
...
5
MUFFLER ECH-A300000781
...
6
SCREEN, SPARK ARRESTER ECH-14586232630
...
7
GUIDE, EXHAUST ECH-A313000280
...
8
BOLT 4x10 ECH-90016204010
...
9
GASKET, EXHAUST ECH-14551032431
...
10
COVER, AIR FILTER ECH-A232000070
...
11
LABEL - MODEL ECH-X503002490
...
12
LATCH, FILTER COVER ECH-A235000050
...
13
PIN 3x12 ECH-90033030120
...
14
SPRING, TENSION ECH-V451000190
...
15
SPRING, FLAT ECH-V453000040
...
16
SCREW 4x10 ECH-90025304010
...
17
GROMMET ECH-13033832430
...
18
COVER, AIR FILTER ECH-A238000030
...
19
FILTER, AIR ECH-A226000070
...
20
MOUNT, AIR FILTER ECH-A204000020
...
21
BOLT, FLANGE ECH-9110705050
...
22
CARBURETOR See Carburetor Diagram For Details ECH---
...
23
GROMMET, NEEDLE ECH-V131000010
...
24
PIPE, IMPULSE ECH-13011019831
...
25
INSULATOR, INTAKE ECH-P021002801
...
26
CUSHION ECH-V420000321
...
27
CASE, CARBURETOR ECH-P021014560
...
28
NUT ECH-13002033330
...
29
BOLT 5x20 ECH-90016205020
...
30
CUSHION ECH-V420000540
...
31
GROMMET, CHOKE ECH-17881033331
...
32
ROD, CHOKE ECH-A241000030
...
33
GROMMET, THROTTLE ROD ECH-17811432630
...
34
ROD, THROTTLE ECH-C454000181
...
35
SWITCH, ON-OFF ECH-16340032430
...
36
LABEL - STOP ECH-89015719830
...
37
PLATE, GROUND ECH-15663532430
...
38
LEAD ECH-16202132431
...
...
...
...
...
