Echo QV-670 S/N: 04001001 - 04999999 Quick Vent Saw

Model: QV-670 S/N: 04001001 - 04999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?

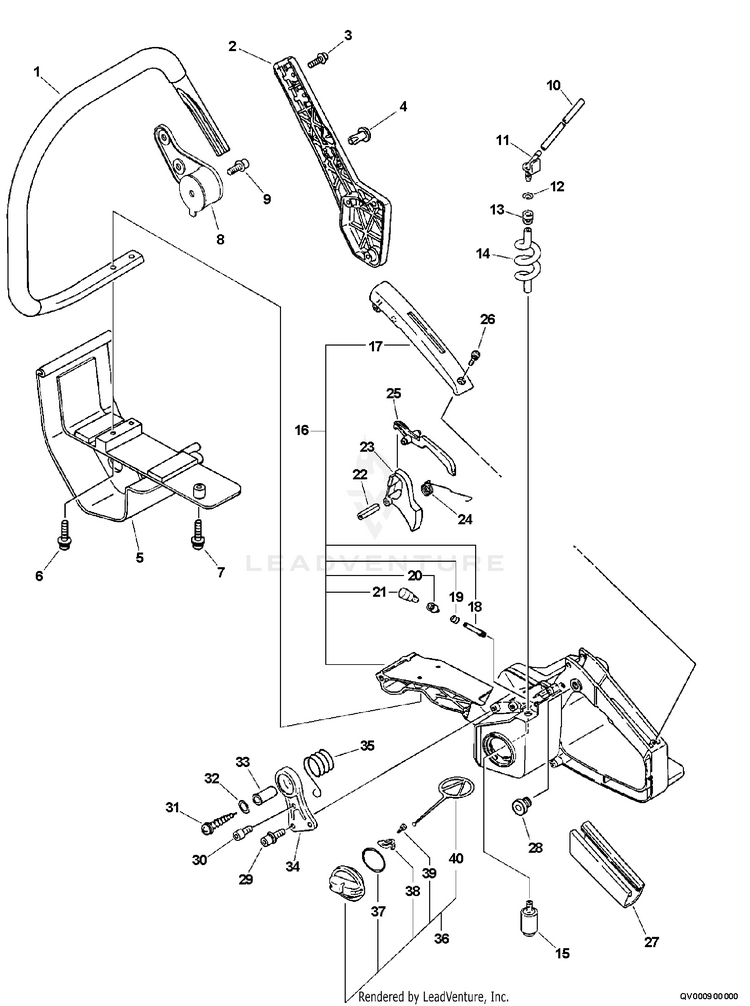

product name

Handles

...
...
1
HANDLE, FRONT ECH-C400000101
...
2
BRACKET, GRAY HANDLE ECH-35161638230
...
3
SCREW 5x20 ECH-90023805020
...
4
RIVET ECH-V649000010
...
5
STAND ECH-30510532630
...
6
BOLT 5x30 ECH-90016205030
...
7
BOLT 5x25 ECH-90016205025
...
8
CUSHION 5 ECH-V401000050
...
9
BOLT 5x14 ECH-90016205014
...
10
PIPE, FUEL 3x6x110 RePower BULK OPTION: 90015 ECH-13201056031
...
11
CONNECTOR, PIPE ECH-13201133031
...
12
CLIP 6.5 MM ECH-V490001230
...
13
GROMMET ECH-13211501462
...
14
PIPE, FUEL ECH-13201030831
...
15
FILTER, FUEL ECH-A369000460
...
16
HANDLE, REAR Includes ITEMS 17-21 ECH-35110338134
...
17
COVER, HANDLE ECH-35115535431
...
18
PIPE, VENT ECH-13131232430
...
19
CLIP 5.5 ECH-13011100530
...
20
HOLDER, VENT ECH-13132840630
...
21
VENT ASSY ECH-A356000031
...
22
PIN, SPRING 5x25 MM ECH-90034250025
...
23
TRIGGER, THROTTLE ECH-C450000042
...
24
SPRING, THROTTLE RETURN ECH-17804319830
...
25
LEVER, THROTTLE LOCKOUT ECH-17809037930
...
26
SCREW 4x14 ECH-90023804014
...
27
GRIP, HANDLE ECH-35111119831
...
28
PLUG ECH-V162000040
...
29
BOLT 5x14 ECH-90016205014
...
30
BOLT 5x8 ECH-90010505008
...
31
SCREW - 5x35 ECH-90010505035
...
32
WASHER 5 ECH-90063000005
...
33
COLLAR 5 ECH-V353000120
...
34
BRACKET, CUSHION ECH-V419000010
...
35
SPRING, COMPRESSION ECH-V450000150
...
36
CAP ASSY, FUEL INCLUDES ITEMS 37-40 ECH-P021037420
...
37
O-RING 29 ECH-90072020029
...
38
RETAINER, CONNECTOR ECH-13105019830
...
39
SCREW, TAPPING 3x8 ECH-90024603008
...
40
CONNECTOR, CAP L= 60 MM ECH-A365000050
...
...
...
...
...
