Echo PPT-266 S/N: E06426001001 - E06426999999 Pole Saw

Model: PPT-266 S/N: E06426001001 - E06426999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

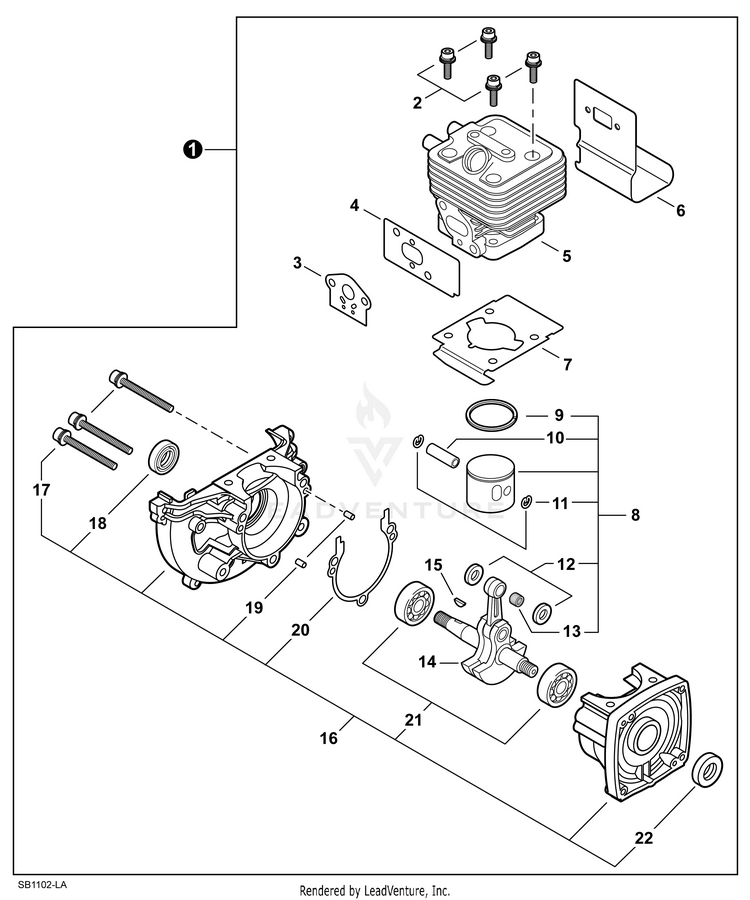

Engine

...
...
1
SHORT BLOCK SB1102 Includes Items 2-22 ECH-SB1102
...
2
BOLT 5x25 ECH-90016205025
...
3
GASKET, INTAKE ECH-V103000270
...
4
HEAT SHIELD, INTAKE ECH-V103000210
...
5
CYLINDER ECH-A130001940
...
6
HEAT SHIELD, EXHAUST ECH-V104000780
...
7
GASKET, CYLINDER ECH-V100000210
...
8
PISTON KIT Includes Items 9-13 ECH-P021037310
...
9
RING, PISTON ECH-A101000170
...
10
PIN, PISTON ECH-10001335430
...
11
RING, SNAP ECH-10001503931
...
12
WASHER, THRUST ECH-10001453630
...
13
BEARING, NEEDLE 9 ECH-10001216131
...
14
CRANKSHAFT ASSY ECH-A011000434
...
15
KEY, WOODRUFF ECH-10014212330
...
16
CRANKCASE KIT Includes Items 17-22 ECH-P021010801
...
17
BOLT 5x28 ECH-90016205028
...
18
SEAL, OIL 12 ECH-10021242031
...
19
PIN, LOCATING 4x8 ECH-90033040080
...
20
GASKET, CRANKCASE ECH-10024242030
...
21
BEARING, BALL 6201 ECH-9403536201
...
22
SEAL, OIL 12 ECH-V505000050
...
...
...
...
...
