Echo PPF-2620 S/N: E60615001001 - E60615999999 Pole Saw

Model: PPF-2620 S/N: E60615001001 - E60615999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

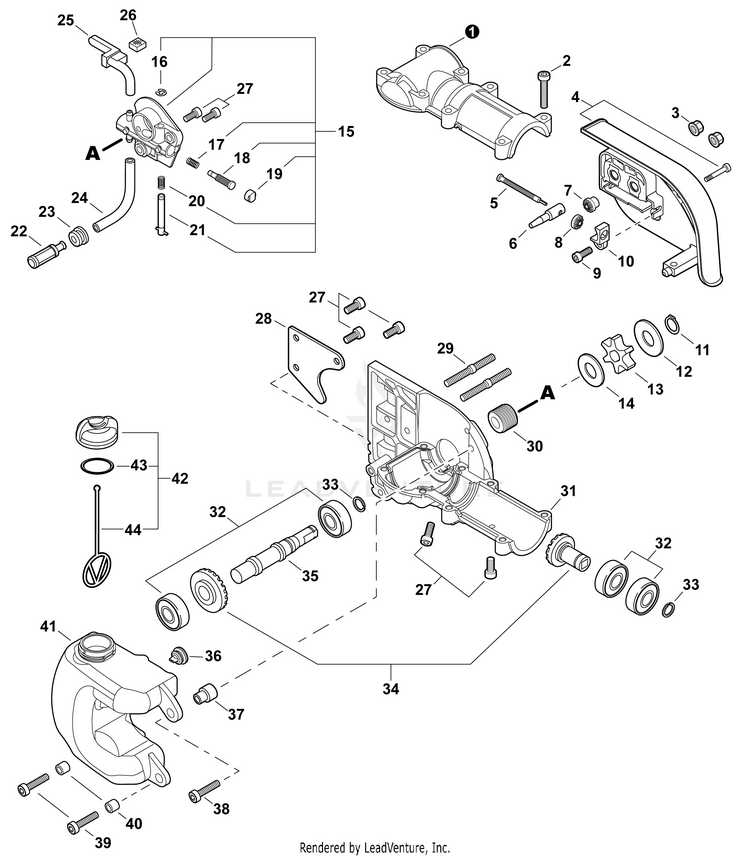

Gear Case

...
...
1
COVER, GEAR CASE ECH-C531000010
...
2
BOLT, TORX 5x25 ECH-V805000170
...
3
NUT, FLANGE M6 ECH-43301903933
...
4
GUARD, SPROCKET ECH-C300000921
...
5
BOLT 5 ECH-V203000041
...
6
TENSIONER, CHAIN ECH-C309000030
...
7
GEAR - 14 TOOTH ECH-V651000320
...
8
GEAR - 14 TOOTH ECH-V651000310
...
9
SCREW 4 ECH-V252000040
...
10
COLLAR 8 ECH-V355000140
...
11
RING, SNAP ECH-V583000090
...
12
WASHER 10 ECH-V307000160
...
13
SPROCKET, DRIVE ECH-C580000070
...
14
WASHER 10 ECH-17501439131
...
15
AUTO-OILER ASSY Includes Items 16-21 ECH-C022000010
...
16
E-RING ECH-12532715130
...
17
SPRING ECH-P022010660
...
18
PLUNGER ASSY ECH-P022010650
...
19
CAP, PLUNGER ECH-P022010640
...
20
SPRING ECH-P022010670
...
21
ADJUSTER, OILER ECH-P022010680
...
22
FILTER, OIL ECH-P100001900
...
23
GROMMET ECH-13211501462
...
24
PIPE 3x6x70 ECH-13011012331
...
25
PIPE, OIL OUTLET ECH-43721139134
...
26
PAD, FOAM ECH-43724439130
...
27
BOLT, TORX 5x10 ECH-V805000130
...
28
HOOK ECH-C649000140
...
29
BOLT, STUD 6 ECH-V224000040
...
30
GEAR, WORM ECH-43706338330
...
31
CASE, GEAR ECH-C531000460
...
32
BEARING, BALL ECH-9404206001
...
33
RING, SNAP 12 ECH-90070600012
...
34
GEAR SET ECH-P021009732
...
35
SHAFT, GEAR ECH-C534000430
...
36
VENT ASSY ECH-13131406320
...
37
COLLAR 6 ECH-V354000010
...
38
BOLT, TORX 5x25 ECH-V805000170
...
39
BOLT, TORX 5x20 ECH-V805000160
...
40
SPACER 6.2x7.8x6 ECH-13104528230
...
41
TANK, OIL ECH-C200000081
...
42
CAP ASSY Includes Items 43-44 ECH-P021005592
...
43
O-RING 18 ECH-90072000018
...
44
CONNECTOR, CAP L= 60 MM ECH-A365000050
...
...
...
...
...
