Echo PPF-2620 S/N: E60615001001 - E60615999999 Pole Saw

Model: PPF-2620 S/N: E60615001001 - E60615999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

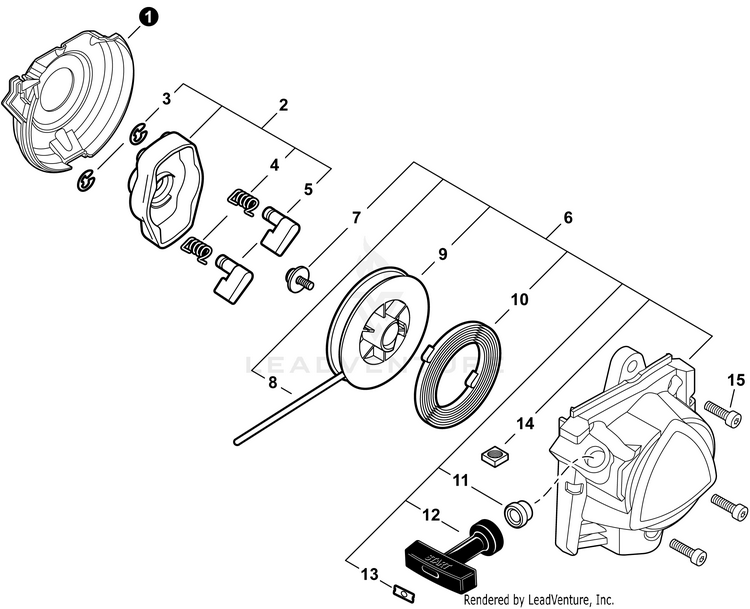

Starter

...
...
1
COVER, DUST ECH-A127000470
...
2
PAWL ASSY, STARTER Includes items 3-5 ECH-A052000030
...
3
E-RING 4 ECH-P022002100
...
4
SPRING, RETURN ECH-17723440630
...
5
PAWL, STARTER ECH-P022003120
...
6
STARTER ASSY, RECOIL Includes items 7-14 ECH-A051003210
...
7
SCREW ECH-17723644330
...
8
ROPE, STARTER ECH-P022043690
...
9
REEL, ROPE ECH-17721540630
...
10
SPRING, RECOIL ECH-17722040630
...
11
GUIDE, ROPE ECH-17722742030
...
12
GRIP, STARTER ECH-17722827030
...
13
RETAINER, ROPE ECH-P022037670
...
14
NUT - 5 - SQUARE ECH-90056550005
...
15
BOLT, TORX 5x12 ECH-V805000140
...
...
...
...
...
