Echo PAS-211 Pro Attachment Series

Model: PAS-211

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

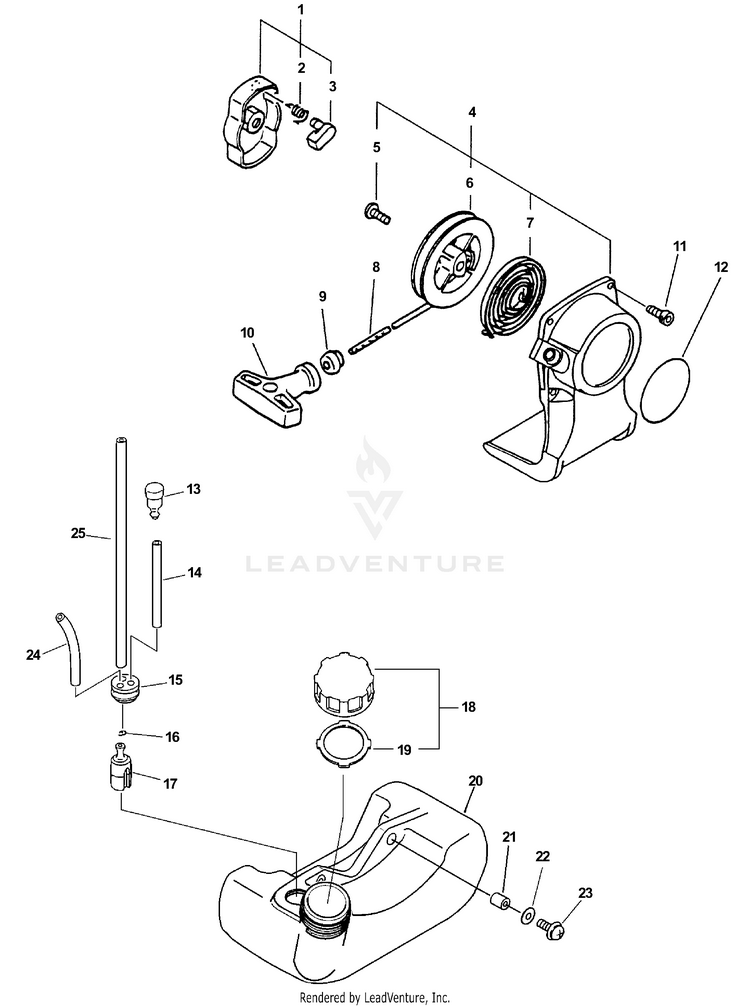

Starter Assembly, Fuel System

...
...
1
PAWL ASSY, STARTER INCLUDES ITEMS 2 & 3 ECH-17720212220
...
2
SPRING, RETURN ECH-17723412220
...
3
PAWL, STARTER - BLACK ECH-17721844330
...
4
STARTER ASSY INCLUDES ITEMS 5-10 ECH-17720054130
...
5
SCREW ECH-17723644330
...
6
REEL, ROPE ECH-17721544430
...
7
SPRING, RECOIL ECH-P022019680
...
------------------
ROPE, STARTER 3.0×890 RePower BULK OPTION: 99944440000 ECH---
...
9
GUIDE, ROPE ECH-17722742030
...
10
GRIP, STARTER ECH-17722806530
...
11
BOLT 4x16 ECH-V202000830
...
12
LABEL - STARTER - ECHO ECH-X502000330
...
13
VENT ASSY ECH-A356000031
...
14
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001200
...
15
GROMMET, FUEL 5 ECH-13211546730
...
16
CLIP 6 MM ECH-13201309820
...
17
FILTER, FUEL ECH-A369000480
...
18
FUEL CAP ASSY Includes ITEM 19 ECH-P200000830
...
19
GASKET, FUEL CAP ECH-V107000230
...
20
TANK, FUEL ECH-A350000220
...
21
SPACER 6.2x7.8x6 ECH-13104528230
...
22
WASHER 5.5x12x0.8 ECH-90060300005
...
23
SCREW 5x16 ECH-90023805016
...
24
PIPE, RETURN, FUEL, 3X6X90 RePower BULK OPTION: 90017 ECH-V471006160
...
25
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001190
...
xx
BULK STARTER ROPE - 3.0 MMx61 M ECH-99944440000
...
...
...
...
...
