Echo PAS-211 Pro Attachment Series

Model: PAS-211

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

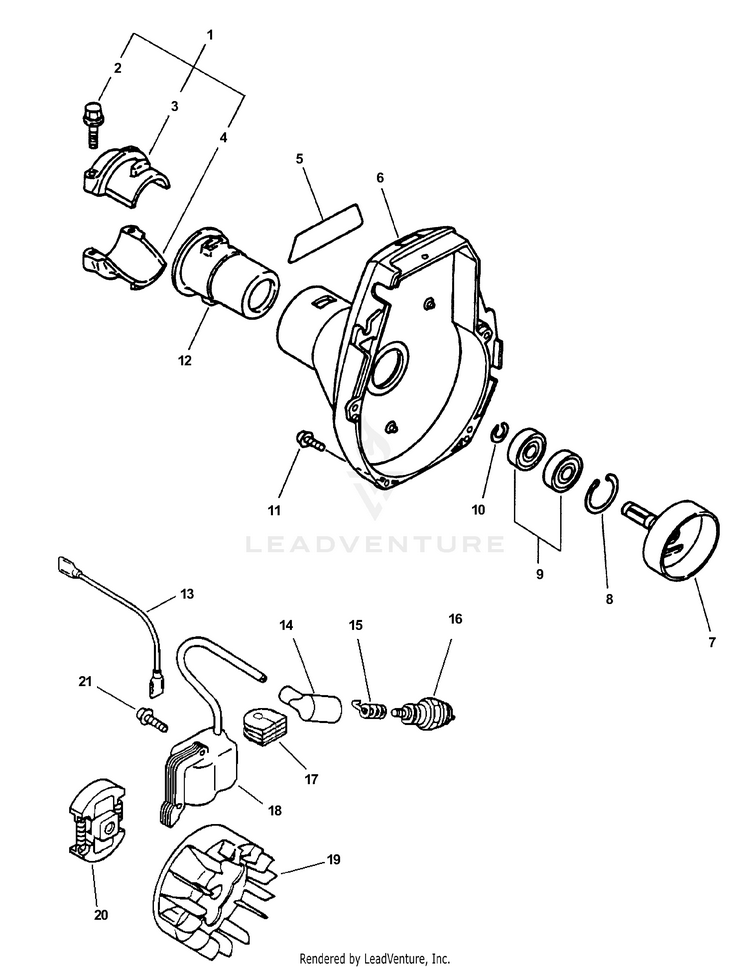

Fan Housing Assembly, Clutch, Ignition

...
...
1
RETAINER KIT Includes ITEM 2-4 ECH-61090355230
...
2
BOLT - 5x25 ECH-90014205025
...
3
HOLDER, MAIN PIPE - UPPER ECH-61092227432
...
4
HOLDER - LOWER ECH-A575000100
...
5
LABEL - MODEL ECH-X503001390
...
6
COVER ASSY, FAN ECH-10150352131
...
7
DRUM, CLUTCH ECH-17500548931
...
8
RING, SNAP 28 ECH-90070200028
...
9
BEARING, BALL 6001 ECH-9406106001
...
10
RING, SNAP 12 ECH-90070100012
...
11
BOLT 4x16 ECH-V202000830
...
12
CUSHION 25 ECH-61091055230
...
13
LEAD - IGNITION ECH-V485001080
...
14
CAP, SPARK PLUG ECH-15901201620
...
15
TERMINAL, SPARK PLUG ECH-15901103432
...
16
SPARK PLUG - BPMR7A ECH-15901010230
...
17
GROMMET ECH-15611240630
...
18
COIL, IGNITION ECH-15660152131
...
19
FLYWHEEL ECH-A409000100
...
20
CLUTCH ASSY ECH-17500056831
...
21
SCREW 4x22 ECH-90016204022
...
...
...
...
...
